Sennheiser EW312G3 Kablosuz Yaka Mikrofonu
YENİ MODEL İÇİN İLETİŞİME GEÇİNİZ
- Marka: Sennheiser
- Ürün Kodu:: mars009928
Telsiz Genel Müdürlüğü Frekanslarına Uygun, 4,5G Kapsamına girmeyen, 2 yıl Distrübütör Garantili, Orjinal Ürün
Communicating in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.
Features
-
Sturdy metal housing (transmitter and receiver
-
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
-
Enhanced frequency bank system with up to 24 compatible frequencies
-
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
-
High-quality true diversity reception
-
Pilot tone squelch for eliminating RF interference when transmitter is turned off
-
Automatic frequency scan feature searches for available frequencies
-
Enhanced AF frequency range
-
Increased range for audio sensitivity
-
Wireless synchronization of transmitter parameter from receiver
-
User-friendly menu operation with more control options
-
Illuminated graphic display, receiver also shows transmitter settings
-
Auto-Lock function avoids accidental changing of settings
-
HDX compander for crystal-clear sound
-
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
-
Programmable Mute function
-
Integrated Equalizer and Soundcheck mode
-
Contacts for recharging BA 2015 accupack directly in the transmitter
-
Wide range of accessories adapts the system to any requirement
| Frequency range | 606...648 MHz | 504649 |
|---|---|---|
| 925...932 MHz / Korea | 505527 | |
| 823...865 MHz / Power supply unit UK | 503342 | |
| 823...865 MHz / Power supply unit EU / Germany | 503341 | |
| 823...865 MHz / Power supply unit EU | 503340 | |
| 780...822 MHz / Power supply unit UK | 503339 | |
| 780...822 MHz / Power supply unit EU / Germany | 503338 | |
| 780...822 MHz / Power supply unit EU | 503337 | |
| 734...776 MHz / Power supply unit US | 503336 | |
| 734...776 MHz / Power supply unit EU | 503335 | |
| 626...668 MHz / Power supply unit US | 503334 | |
| 626...668 MHz / Power supply unit EU | 503333 | |
| 566...608 MHz / Power supply unit US | 503332 | |
| 566...608 MHz / Power supply unit EU | 503331 | |
| 516...558 MHz / Power supply unit US | 503330 | |
| 516...558 MHz / Power supply unit EU | 503112 | |
| Frequency response (microphone) | 80.....18000 Hz | |
| Compander | HDX | |
| Audio-XLR connector | 6,3 mm | |
| Presets | 24 | |
| Microphone | elektret | |
| Sound pressure level (SPL) | 130 dB(SPL) max. | |
| THD, total harmonic distortion | < 0,9 % | |
| Pick-up pattern | omni- directional | |
| AF sensitivity | 20 mV/Pa | |
| Signal-to-noise ratio | > 115 dB(A) | |
| RF frequency range | 516..... 865 MHz | |
| RF output power | 10/30 mW | |
| Transmission/receiving frequencies | 1680 | |
| Switching bandwidth | 42 MHz | |
| Peak deviation | +/- 48 kHz | |
| In compliance with | ETS 300422 , ETS 300445 , CE , FCC | |
| Antenna connector | 2 BNC, 50 Ohm | |
| Input voltage range | 1,8 V, line | |
| 2,4 V, line | ||
| Audio output level | unbalanced:Jack: +12 dBu max | |
| balanced:XLR: +18 dBu max |
Transmitter
Article No. 504649, 505527, 503342, 503341, 503340, 503339, 503338, 503337, 503336, 503335, 503334, 503333, 503332, 503331, 503330, and 503112
| Dimensions | 82 x 64 x 24 mm | |
|---|---|---|
| Weight | ~ 160 g | |
| Operating time | > 8 h | |
Receivers
Article No. 504649, 505527, 503342, 503341, 503340, 503339, 503338, 503337, 503336, 503335, 503334, 503333, 503332, 503331, 503330, and 503112
| Dimensions | 212 x 202 x 43 mm | |
|---|---|---|
| Weight | 980 g | |

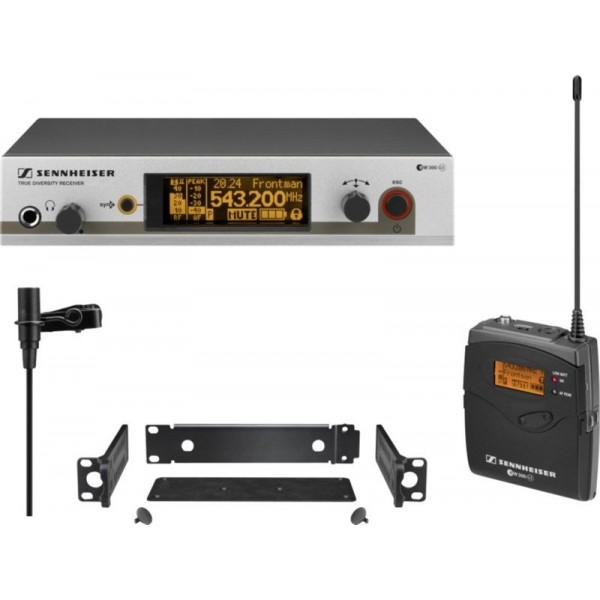

What's in the box?
- 1 EM 300 G3 rack-mount receiver
- 1 SK 300 G3 bodypack transmitter
- 1 ME 2 clip-on microphone (omni-directional)
- 1 GA 3 rack mount
- 1 NT 2 power supply unit
- 2 antennas
- 2 AA batteries
- Operating instructions
