| Projection System |
DLP |
| Native Resolution |
1080P (1920x1080) |
| Brightness (ANSI Lumens) |
4000AL |
| Contrast Ratio |
10000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.59~2.87, f=16.88~21.88 |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.15-1.49 (Wide 95” ±3% @ 2.42m) |
| Image Size (Diagonal) |
60" ~ 300" |
| Zoom Ratio |
1.3x |
| Lamp Type |
260W |
| Lamp Mode (Normal/Economic)* |
2500/3500/4500 hours |
| Keystone Adjustment |
2D, Vertical & Horizontal ± 30 degrees;
Auto vertical keystone ± 30 degrees |
| Projection Offset** |
Vertical: 130% ±5% |
| Resolution Support |
VGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB = Reduced blanking |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |

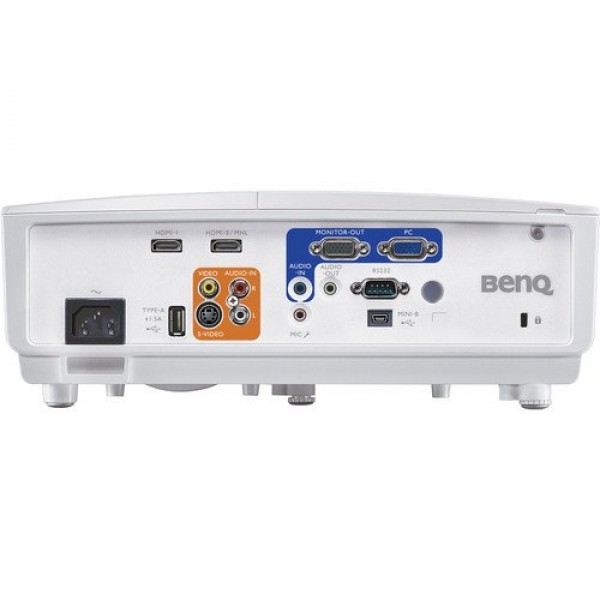

| Interface |
Computer in (D-sub 15pin) x1( integrate with component)
HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1)
MHL x 1(HDMI with MHL2.0)
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x1
Audio out (Mini Jack) x 1
Speaker 10W x 1
USB (Type A) x 1 (1.5A power supply)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear) |
| Dimensions (W x H x D mm) |
314.2x116x216.3mm (include feet)
314.2x102x216.3mm (exclude) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080pSide by Side: Up to 24Hz 1080pTop Bottom: Up to 60Hz 1080p |
| Audible Noise (Normal/Economic Mode) |
36/31 dBA (Normal/Economic mode) |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese
(28 Languages) |
| Picture Modes |
**Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
| Accessories (Standard) |
Carry bag
Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region) |
| Accessories (Optional) |
Spare Lamp Kit
Video Streaming Dongle - QCast
Ceiling mount kit
Carry bag
3D Glasses |
| Environmental Notice |
Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org. |
| Power Supply |
AC100 to 240V, 3.5A, 50 to 60 Hz |
| Power Consumption |
330 W(Normal), 270 W(Eco), Standby <0.5W |
| Power Management Function |
Automatic power off after 20 minutes without a display source |
| Weight |
3.3 kg |
