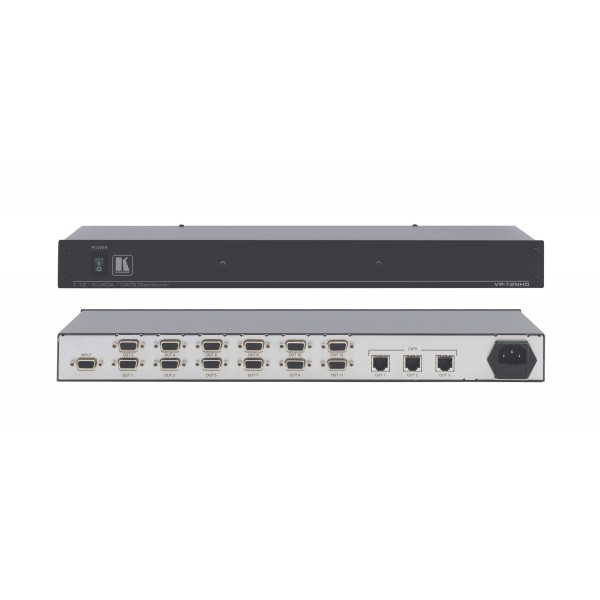

The VP−12NHD is a high−performance distribution amplifier for computer graphics video signals. It takes one input, provides correct buffering and isolation, and distributes the signal to twelve computer graphics outputs on 15−pin HD connectors and three twisted pair outputs.
-
High Bandwidth (15-pin HD) - 330MHz (−3dB).
-
Max. Resolution (Twisted Pair) - WUXGA & 1080p.
-
HDTV Compatible.
-
Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
-
Power Connect™ System - A single connection to the transmitter powers all units when the receivers are within 150ft (50m) of the transmitter.
-
Twisted Pair Connectors - RJ−45 connectors.
-
Control - RGB Level (Gain), ID bit.
-
System Range (Twisted Pair) - Up to 100m (300ft).
-
Cable (Twisted Pair) - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
|
INPUT: |
1 UXGA on a 15−pin HD (F) connector. |
|
OUTPUTS: |
12 UXGA on 15−pin HD (F) connectors, 3 twisted pair on RJ−45 connectors. |
|
MAX. OUTPUT LEVEL: |
1.7Vpp. |
|
BANDWIDTH (-3dB): |
330MHz (UXGA). |
|
MAX. RESOLUTION: |
Up to UXGA. |
|
DIFF. GAIN: |
0.17% (UXGA). |
|
DIFF. PHASE: |
0.44Deg (UXGA). |
|
K-FACTOR: |
<0.05%. |
|
S/N RATIO: |
73dB. |
|
CONTROLS: |
Level: −0.8dB to 2.4dB. |
|
COUPLING: |
DC. |
|
POWER CONSUMPTION: |
230V AC, 50/60Hz, (115V AC, USA), 31VA. |
|
DIMENSIONS: |
19" x 7" x 1U W, D, H, rack mountable. |
|
WEIGHT: |
2.7kg (6lbs) approx. |
|
ACCESSORIES: |
Power cord, rack "ears". |
