Atlona AT-UHD-SW-51
-
4K/UHD capability
-
Auto-switching
-
TCP/IP, RS-232, and IR control
-
EDID management
-
HDCP management
-
Easy, GUI-based configuration using integrated web server
-
ARC – Audio Return Channel

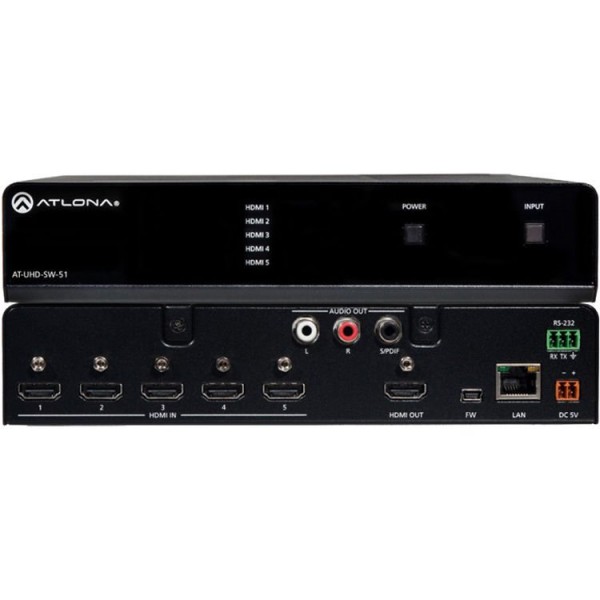

The Atlona AT-UHD-SW-51 is a 5×1 HDMI switcher with auto-switching and advanced control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD® and DTS-HD Master Audio™; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the optional 19” rack mount brackets. Two units can be mounted side-by-side.
Features
4K/UHD capability
-
Compatible with Ultra High Definition sources and displays
-
Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
Auto-switching
-
Reduces complexity or eliminates control system completely
-
Simplifies user operation
TCP/IP, RS-232, and IR control
-
Flexible control options compatible with 3rd-party control systems
-
Reduces integration time and costs
