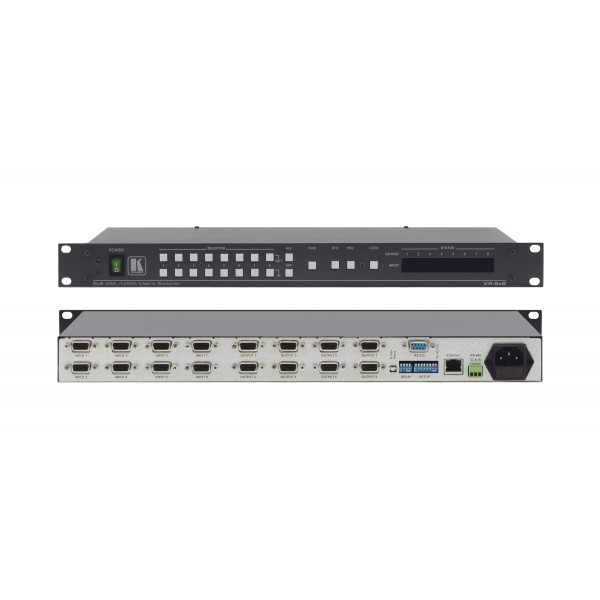

The VP−8x8 is a high−performance matrix switcher for computer graphics video signals, with resolutions up to and exceeding UXGA on 15−pin HD connectors. It can route any or all inputs to any or all outputs simultaneously.
-
High Bandwidth - 400MHz (−3dB) fully loaded.
-
HDTV Compatible.
-
Active Input Indication™ Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. When an input is selected to be switched, the button changes to a different color to indicate it is the active input.
-
Delayed Switching™ - Up to a 4sec (user selectable) delay for clean switching.
-
Flexible Control - Front panel, RS−232 (K−Router™ Windows®−based Kramer software is included), RS−485, Ethernet & IR remote (included).
-
Front Panel Control Lockout.
-
Take Button - Executes multiple switches all at once.
-
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
-
Standard 19” Rack Mount Size - 1U.
-
|
INPUT: |
8 VGA on 15−pin HD connectors (VGA through UXGA). |
|
OUTPUTS: |
8 VGA on 15−pin HD connectors (VGA through UXGA). |
|
MAX. OUTPUT LEVEL: |
1.5Vpp. |
|
BANDWIDTH (-3dB): |
400MHz. |
|
DIFF. GAIN: |
0.04%. |
|
DIFF. PHASE: |
0.04Deg. |
|
K-FACTOR: |
<0.05%. |
|
S/N RATIO: |
75dB. |
|
CROSSTALK (all hostile): |
–53dB. |
|
COUPLING: |
DC |
|
CONTROLS: |
22 front panel buttons, RS−232, RS−485, Ethernet. |
|
INDICATORS: |
8−character display on the front panel. |
|
POWER CONSUMPTION: |
100−240V AC, 50/60Hz; 23VA. |
|
DIMENSIONS: |
19" x 7" x 1U (W, D, H) rack mountable. |
|
WEIGHT: |
2.7kg (6lbs) approx. |
|
ACCESSORIES: |
Power cord, null−modem adapter, Windows®−based Kramer control software, RC−IR3 infrared remote control transmitter. |
