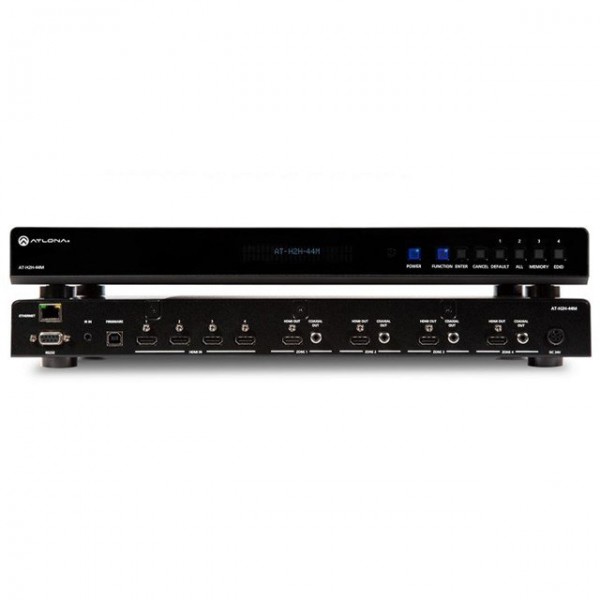

Atlona AT-H2H-44M
The Atlona AT-H2H-44M is an 4-input, 4-output HDMI matrix switcher featuring support for AV signals with resolutions up to 1080p/60 and 1920×1200 with full 3D pass-through, embedded multi-channel audio, and Audio Return Channel capability. It features an extensive, internal library of EDID settings plus EDID learning to ensure compatibility between sources and displays. Each output features an S/PDIF port for audio de-embedding of source signals connected to the matrix or an Audio Return Channel from sources connected to the display. Set-up and control of the matrix is simplified with a powerful, web GUI. The AT-H2H-44M is ideal for multi-display and multi-zone applications in residential and commercial settings.
EDID management
-
Ensures EDID communication between sources and displays
-
Features an internal library of 12 EDID modes and an EDID learning function that can be customized for any connected component
Complete control
-
Easily control the matrix via TCP/IP, RS-232, and GUI; works with most major control systems
-
Included handheld IR remote control plus IR input port for remote placement of included IR receiver
-
SDDP enabled for easy set up and compatibility with Control4 systems
Web GUI
-
An easy to use TCP/IP Web GUI allows network configuration, EDID preset configuration, HDCP support status, RS-232 set-up, and I/O switching
-
Simplifies matrix set-up and control
Four, flexible S/PDIF ports
-
Each S/PDIF port is tied to an output zone and can be used for either an Audio Return Channel from the display or for source audio de-embedding
-
ARC enables a source connected to a display to route audio back through the HDMI connections to an AVR or zone amp connected to the S/PDIF port
Award-winning 10 year limited product warranty
-
Ensures long-term product reliability and performance in residential and commercial systems
-
Specify, purchase, and install with confidence
Additional features
-
Full 3D, Dolby TrueHD, and DTS-HD Master Audio pass through
-
S/PDIF for audio loop out
-
Audio Return Channel (ARC) pass through
-
Dual purpose wall/rack mount ears included
Specifications
Ports
Package Contents
