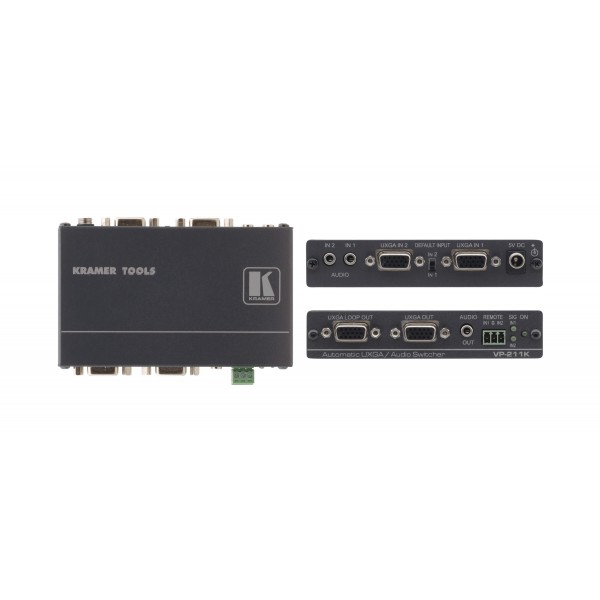

The VP−211K is a high−performance switcher for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio signals. When configured as a standby switcher, it switches to the secondary input upon loss of the primary input.
-
High Bandwidth - 300MHz (−3dB).
-
Looping Input - Input 1.
-
Automatic Standby Switching - Switches from secondary input to primary input when a signal is detected.
-
Control - Automatic or contact closure.
-
Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr−isp® advanced sync processing can be enabled or disabled.
-
Primary Input - Selectable.
-
Active Input LED Indicators.
-
|
INPUTS: |
2 computer graphics video with loop on 15−pin HD connectors, 2 unbalanced stereo audio on 3.5mm mini jacks. |
|
OUTPUTS: |
1 computer graphics video on a 15−pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack. |
|
MAX. OUTPUT LEVEL: |
Video: 1.6Vpp; Audio: >10.5Vpp. |
|
BANDWIDTH (-3dB): |
Video: 300MHz; Audio: >100kHz. |
|
DIFF. GAIN: |
0.03%. |
|
DIFF. PHASE: |
0.03Deg. |
|
K-FACTOR: |
<0.05%. |
|
S/N RATIO: |
Video: 71dB; Audio: 71dB weighted. |
|
CROSSTALK: |
Video: –59dB @5MHz; Audio: <–66dB @1kHz. |
|
CONTROLS: |
Contact closure remote control, input default selection switch. |
|
COUPLING: |
DC. |
|
AUDIO THD + NOISE: |
<0.032%. |
|
AUDIO 2nd HARMONIC: |
<0.004%. |
|
POWER CONSUMPTION: |
5V DC, 200mA. |
|
DIMENSIONS: |
12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H. |
|
WEIGHT: |
0.3kg (0.66lbs) approx. |
|
ACCESSORIES: |
Power supply, mounting bracket. |
|
OPTIONS: |
RK−3T 19" rack adapter. |
