Display Technology |
Single 0.65” WXGA DC3 DMD chip DLP® Technology by Texas Instruments |
|
Native Resolution |
WXGA 1280 x 800 |
|
Brightness1 (Bright Mode) |
4500 ANSI Lumens |
|
Contrast |
20,000:1 |
|
Lamp Life2 Eco+/Dynamic/Eco/Bright |
7000/5500/5000/3000 (hrs) |
|
Throw Ratio 3 |
1.28 - 1.536:1 |
|
Zoom Type |
1.2x Manual |
|

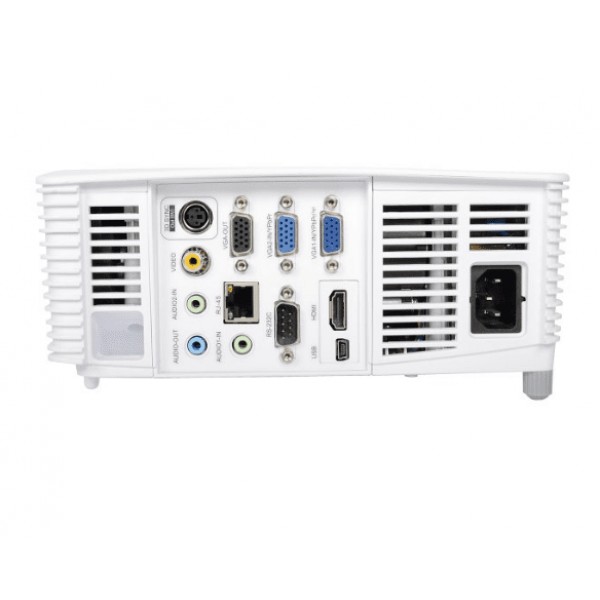

I/O Connectors |
HDMI (1.4a 3D support), 2 x VGA (YPbPr/RGB), Composite, 2 x Audio In 3.5mm, Audio Out 3.5mm, VGA Out, RS232, USB mouse/service, RJ45, 3D-Sync |
|
Speaker (Watts) |
10 |
|
Keystone Correction |
± 40° Vertical |
|
Weight (kg) |
2.57 |
|
Dimensions (W x D x H) (mm) |
315 x 224 x 102 |
|
Aspect Ratio |
16:10 Native, 16:9/4:3 Compatible |
|
Offset |
112.4% |
|
Projection Screen Size |
0.93 – 7.65m (27.2" to 300") Diagonal 16:10 |
|
Projection Distance |
1.2 - 12m |
|
Projection Lens |
F/2.5~2.67; f=21.8~23.98mm, 1.2x Manual Zoom |
|
Uniformity |
80% |
|
Computer Compatibility |
UXGA, SXGA, XGA, SVGA, VGA, Mac |
|
Video Compatibility |
PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz) |
|
3D Support |
Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
|
3D Compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60 |
|
Horizontal Scan Rate |
15.3 - 91.1kHz |
|
Vertical Scan Rate |
24 - 85Hz |
|
Displayable Colours |
1073.4 Million |
|
Noise Level (Eco mode) |
31dB |
|
Power Supply |
100-240V, 50-60Hz |
|
Power Consumption |
306W Bright mode / 257W Eco mode (< 0.5W Standby) |
|
Lamp Type |
260W |
|
Operating Conditions |
5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
|
Security |
Security bar, Kensington lock, password protection |
|
On Screen Display |
19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi and Arabic. |
|
Standard Accessories |
Carry bag, AC power cord, VGA cable, remote control, battery, quick start card, CD user manual |
|
Optional Accessories |
DLP® Link™ 3D glasses, wireless, ceiling mount |
|
Optional Wireless |
Yes |
|
Warranty |
3 Years |
|
RoHS |
Compliant |
