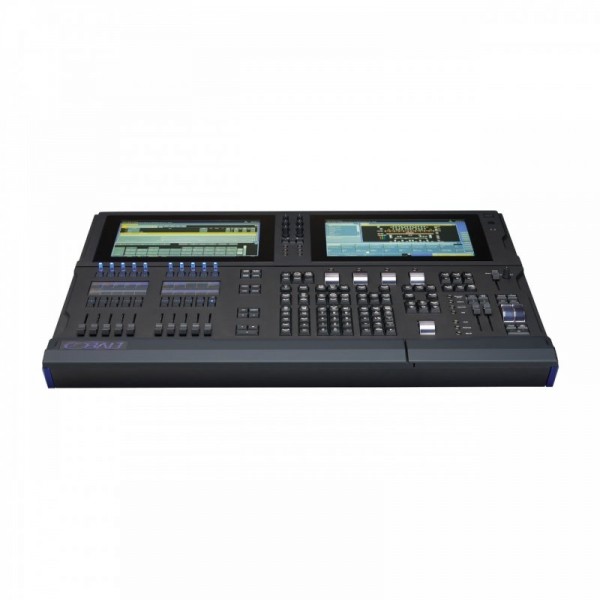

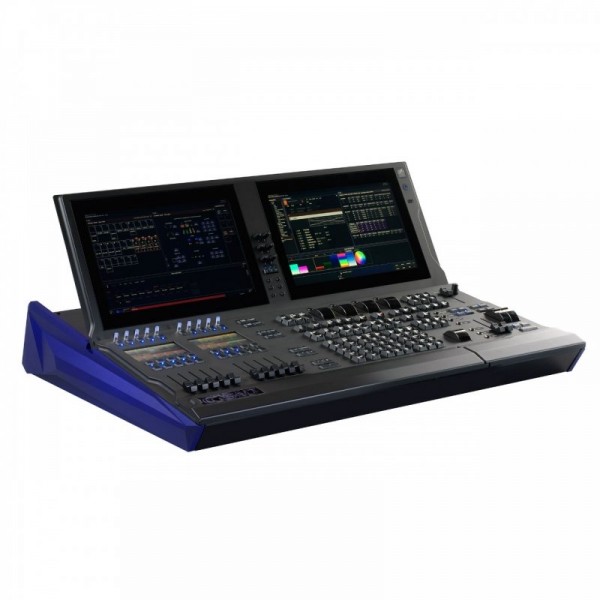

ETC Cobalt 10 Control Desk

SYSTEM CAPACITY

• 16,384 Outputs/parameters
• 5,000 Control Channels
• 9,999,999 Presets
• 4 x 999 Palettes (Focus, Color, Beam, All)
• 999 Groups
• 999 Macros
• 999 Sequences
• 999 Master Pages
• 99 Effect Playbacks
• Supports three external DisplayPort monitors starting at 1280x1024 resolution with optional touchscreen control
• Solid-State Hard Disk
• Seven USB 2.0 ports for USB flashdrive, pointing devices, keyboards

INTERFACES

• Two individually configurable Ethernet ports, 802.3af compliant PoE
• ETCNet2, Net3 (powered by ACN), sACN and ArtNet output protocols
• Two DMX512A/RDM ports
• Contact closure triggers via D-Sub connector
• Three female IEC connectors
• Three video connectors support DisplayPort external displays (1280x1024 minimum resolution) with optional single- or multi-touch screen control
• USB 2.0 multipurpose (seven ports)
• Client PC via Ethernet (requires Client Dongle)
• Net3 Radio Focus Remote (RFR) via USB or Ethernet
• Phone Remote
• OSC Open Sound Control via Ethernet
• UDP event triggering via Ethernet
• aRFR for Android devices and iRFR for Apple iOS devices via wireless Ethernet
• MIDI in/out (MIDI timecode, MIDI notes, MIDI Show Control (MSC))
• MIDI timecode, MIDI Show Control through Net3 Show Control Gateway
• SMPTE timecode through Net3 Show Control Gateway
• Contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Net3 I/O Gateway
• Support for up to 60 additional master playbacks using Cobalt Motorized Fader Wings, Universal Fader Wings or the Congo jr™ Master Playback Wing
