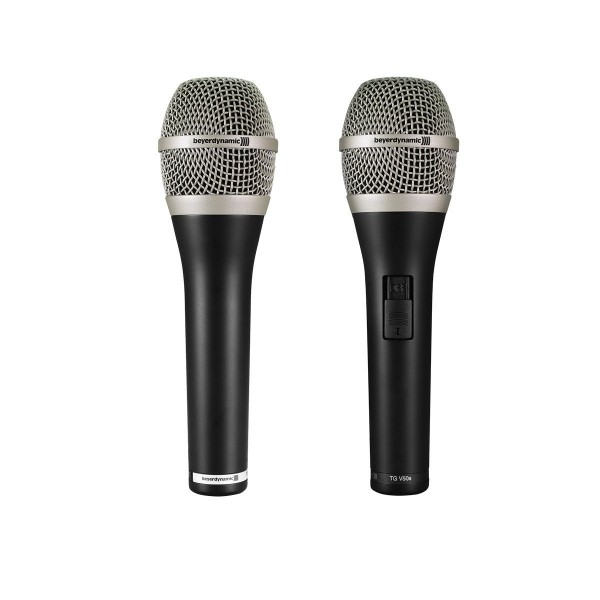

Beyerdynamic TGV50DS Dinamik Cardioid Mikrofon
Transducer type . . . . . . . . . . . . . . . . Dynamic
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . . 50 - 17,000 Hz
Distant miking (measured at 1 m). . . 80 - 17,000 Hz
Open circuit voltage . . . . . . . . . . . . . 2.4 mV/Pa (-52.5 dBV) ±3 dB
Nominal impedance . . . . . . . . . . . . . 600 Ω
Load impedance. . . . . . . . . . . . . . . . ≥ 2 kΩ
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR connector
Dimensions:
Length . . . . . . . . . . . . . . . . . . . . . . . 185 mm
Shaft diameter . . . . . . . . . . . . . . . . . 23/35 mm
Head diameter . . . . . . . . . . . . . . . . . 54 mm A
Weight without cable. . . . . . . . . . . . 270 g
