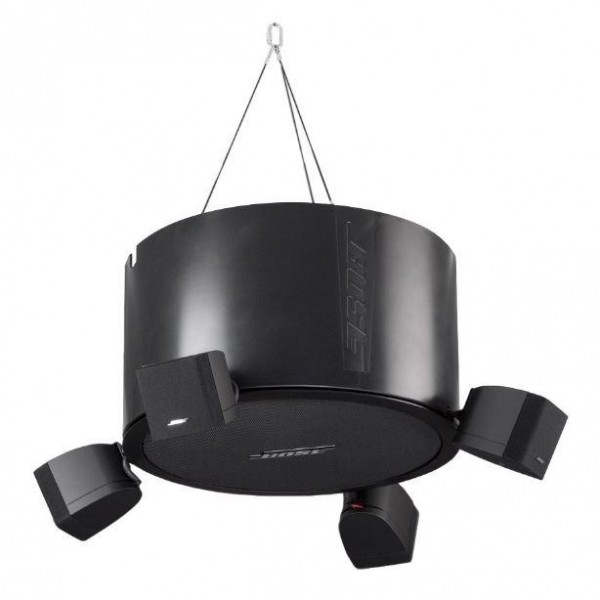

The Bose FreeSpace 3 System Omni Pendant-Mount System | Black is a system designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. Surface and flush components can be mixed and matched to provide greater flexibility to suit a wide range of applications. FreeSpace 3 systems feature a wide coverage pattern and frequency response down to 40 Hz.
Key Features
-
Subwoofer / Satellite Systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations.
-
Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
-
Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
-
Flush-mount components are plenum rated when used with the optional plenum cover
-
Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
-
Can be configured for stereo or mono operation
Technical Specs
Product Type
FreeSpace Loudspeaker
Frequency Response (+/-3dB)
50Hz - 16kHz
Frequency Range (-10dB)
40Hz - 20kHz
Recommended High-Pass Filter
40Hz High-Pass Filter
Loudspeaker EQ
Recommended
Overload Protection
PTC
Long-Term Power Handling
70/100V: 200W (800W Peak)
Low Impedance
100W (400W Peak)
Sensitivity (SPL / 1 W @ 1 m)
82dB SPL
Maximum SPL @ 1 m
93dB (99dB SPL peak in a 45,000 cubic-ft room, with RT60 of 1 second, +/-3dB)
Nominal Impedance
4-Cube System: 6 ohms per channel
2-Cube System: 5 ohms per channel (surface)
Nominal Impedance
6 ohms per channel (flush)
Transformer Taps (70 / 100V)
25W, 50W, 100W, 200W
Driver Compliment
2.5" (64mm) full-range driver (per satellite)
Enclosure
High-Impact Polystyrene, textured
Grille
Cloth Grille
Environmental
Indoor Use Only
Connectors
2-position screw type barrier
Suspension / Mounting
Wall Mount Brackets Included. Bracket Angles: +/-30° Pitch, +/-90° Yaw
Dimensions
3.0" x 3.0" x 4.0" (77mm x 77mm x 102mm)
Depth with bracket: 5.9" (149mm)
Net Weight
1.8 lbs (0.8kg)
Flush Specs
Enclosure
PC/ABS
Grille
Expanded Metal Grille
Environmental
Indoor Use Only
Connectors
2-position terminal block
Suspension / Mounting
Integral quick-install mounting features included. Tab for seismic chain or safety cable
Dimensions
Outer Flange Diameter: 6.2" (157mm)
Depth: 4.8" (123mm)
Ceiling Hole Diameter: 5.0" (127mm)
Ceiling Thickness (Maximum)
1.5" (38mm)
Net Weight
1.9 lbs. (0.9kg)
