Mackie THUMP18S 18" Aktif Subwoofer 1200 Watt
- Marka: Mackie
- Ürün Kodu:: mars003846

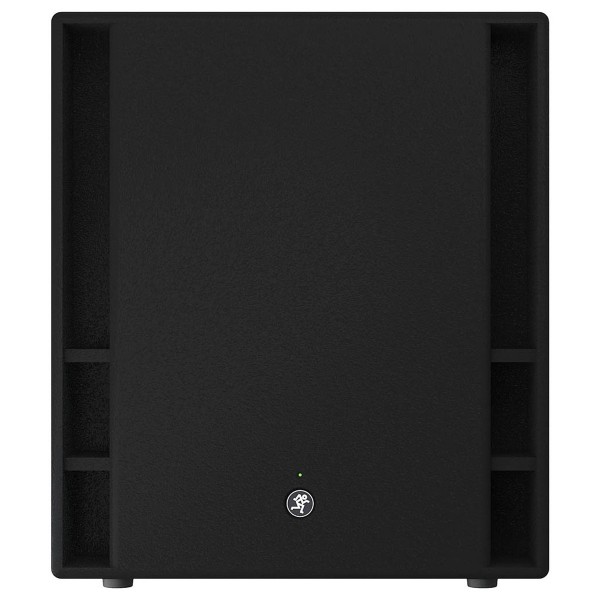

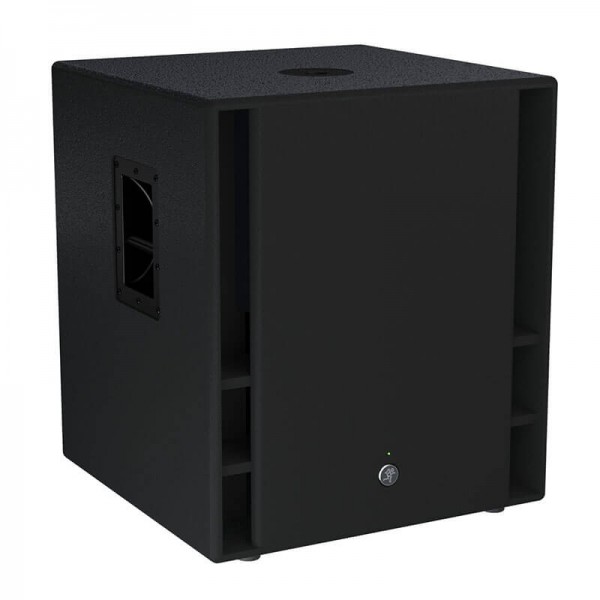

Mackie THUMP18S 18" Band-Pass Aktif Subwoofer
The Mackie Thump18S is a powered subwoofer that features an 18" custom high-output woofer. With 1200 watts of power, you get the high bass output you need in a package that is designed to be tough and portable.
Featuring a built-in crossover at 140 Hz, stereo high-pass outputs and full-range outputs, the Thump18S allows you to connect top speakers and additional subwoofers without any extra hardware. Using efficient Class-D amplification and a dynamic bass frequency response, the speaker is designed to deliver a clear and present low end at any volume.
-
- Professional band-pass design for maximum output and deep, room-filling lows
- 18" custom high-output woofer
- Class-D amplification designed for cool running
- Precision crossover (140 Hz)
- Tuning filters deliver highly accurate bass response
- Robust system protection

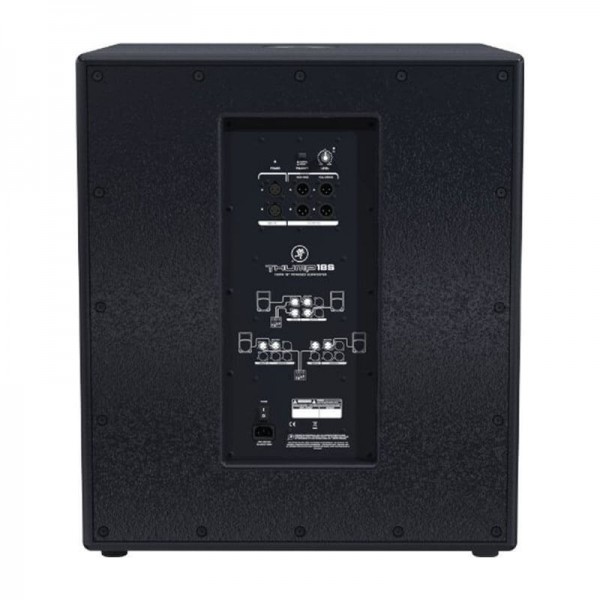

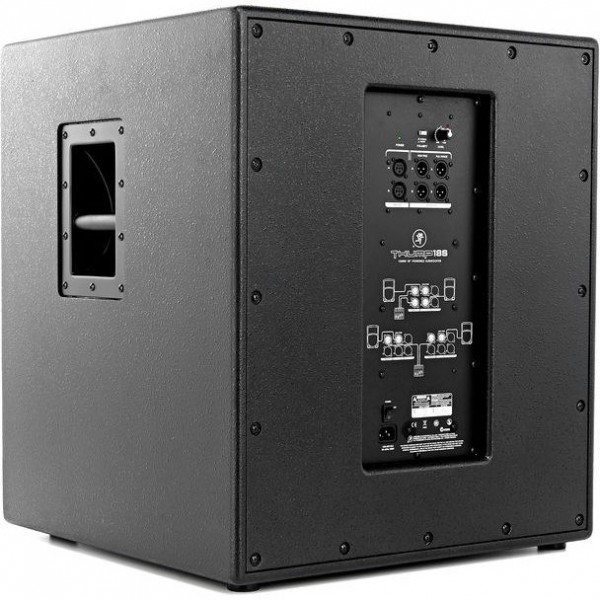

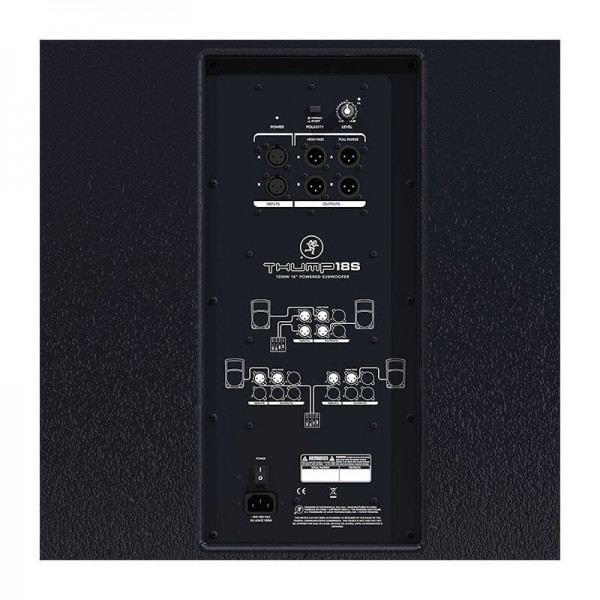

- Dual XLR inputs for mono or stereo applications
- Stereo high-pass outputs optimize sound when connecting top boxes
- Stereo full-range outputs perfect for adding more subwoofers
- User-adjustable level and polarity controls
- Easily mount your full-range loudspeaker via pole cup
| Frequency Response |
40 Hz - 120 Hz (-3 dB) 30 Hz - 132 Hz (-10 dB) |
| Max Peak SPL | 130 dB |
| Crossover Point | 140 Hz |
| Slope | 2nd order HP, 6th order LP |
| Woofer Diameter | 18.0" (457 mm) |
| Voice Coil Diameter | 3.0" (76 mm) |
| Cone Material | Paper |
| Magnet | Ferrite |
| Rated Power |
600 watts RMS 1200 watts peak |
| THD | < 1 % |
| Cooling | Convection |
| Design | Class D |
| Input Type | Female XLR balanced |
| Input Impedance | 20 k ohms balanced, 20 k ohms unbalanced |
| Output Type |
Male XLR balanced, full range Male XLR balanced, high pass |
| Power |
US Detachable Line Cord: 100 – 120 VAC, 50 – 60 Hz, 150W
EU Detachable Line Cord: 220 – 240 VAC, 50 – 60 Hz, 150W AC Connector: 3-pin IEC 250 VAC, 10 A male Power Supply Type: Switchmode Operating Temperature: 0 - 40º C Extended Ambient Temperature: 32 - 104º F
|
| Input Protection | Peak and RMS limiting, power supply and amplifier thermal protection |
| LED | Front and rear power ON, rear OL limiter |
| Construction |
Cabinet Exterior: Grade 15 mm plywood
Finish: Textured black catalyzed polyurethane paint
|
| Handles | One on each side |
| Mounting | The Thump18S subwoofer is designed to sit on the floor or stage. It is NOT designed to be pole-mounted or suspended. The cabinet has no rigging points and is not suitable for rigging. Never attempt to suspend the Thump18S by its handles |
| Dimensions | 26.5 x 22.6 x 22.8" (672.0 x 573.0 x 580.0 mm) |
| Weight | 82.0 lb (37.2 kg) |
