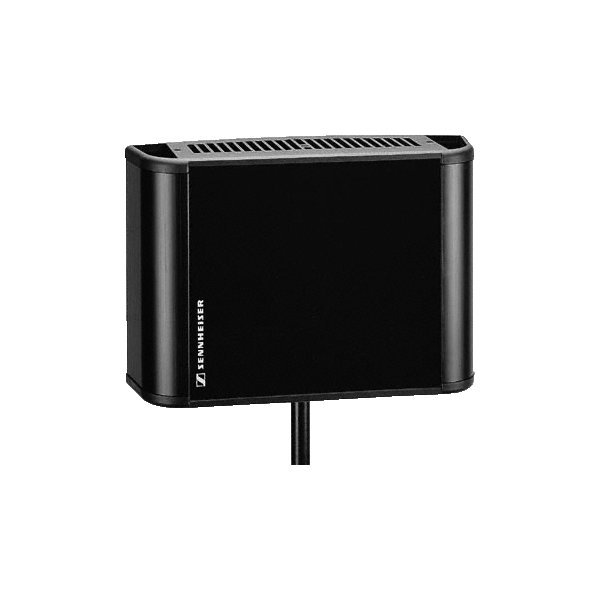

The SZI 1029 is a 5-W high-power radiator for use with all wideband and narrow-band modulators. The radiator is automatically switched on by the RF carrier and can cover areas of up to 800 m² in single-channel operation. High-quality GaAlAs
transmitting diodes have been arranged in 12 independent groups to ensure reliable transmission. A malfunction indicator is triggered when the radiating power is reduced by more than 30 %.
Features
-
High-power radiator with a maximum coverage area of 800 m²
-
10 variant)
-
RF output for connecting additional radiators
-
Automatic on/off function
-
Versatile installation due to 5/8", 3/8" and 1/2" threads
-
Excellent reliability due to 12 independent groups of transmitting diodes and malfunction indicator
| Impedance |
5 Kiloohm |
|
| Weight |
2,1 kg |
|
| Current consumption |
350 mA / Stand-by 50 mA |
|
| Operating voltage (mains) |
90-260 V, 50- 60 Hz |
|
| Effective radiated power |
5 W |
|
| IR Diodes |
132 GaAlAs |
|
| Max. coverage area |
800 m² |
|
| RF input |
BNC |
|
| RF output |
BNC |
|
| Threshold for automatic on/off function |
50 mV ( HF- Signal) |
|
