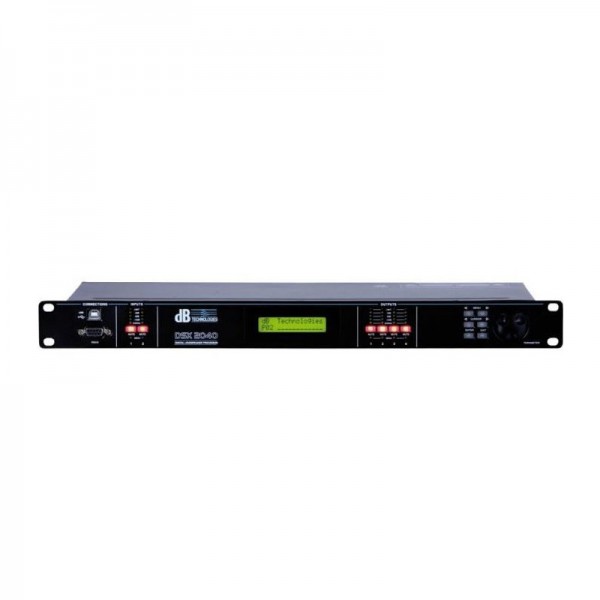

The DSX 2040 is a versatile digital controller well suited for use in mobile racks as well as for fixed installation.
Featuring two inputs and four outputs, it delivers outstanding performance in combinations with widely usedtwo-way active stereo systems made up of subwoofers and mid-/ high-range units.
An extensive set of signal processing tools such as input compressors, delays, 31-band graphic input EQ, and six parametric EQs for each output lets you tune speaker systems with surgical precision to suit the givenvenue and operating conditions.
Each output also features a precisiontunable digital limiter to protectspeaker components.
The integrated RS232 and USB interfaces lets you remotely manage and control the system conveniently and quickly using a PC.
With the benefit of controller software, you can easily create presets for dBTechnologies speakers as well as custom configurations and load theseprograms to the DSX2040.
If you like the handling convenienceof analog features, you will love the hands-on controls. They afford direct access to key parameters bysimply pushing a button on the front panel.
A backlit display with 2x16 characters and LED level metersabove each input and output afford you at-a-glance insight into the unit’s performance.
Two inputs/ four outputs
High-performance audio converter
Big 2x16 character LCD display and
5-segment LED meter for each channel
96 kHz/ 40 bit signal processing with
> 115 dB dynamic range
Parametric EQs for inputs and outputs
X-over section and freely configurable
signal routing
31-band graphic input EQ
Input compressors
Precision-adjustable digital
limiter for each output
30 storable presets
RS232 and USB interfaces and
software for programming and
exchanging data
PC Remote software
