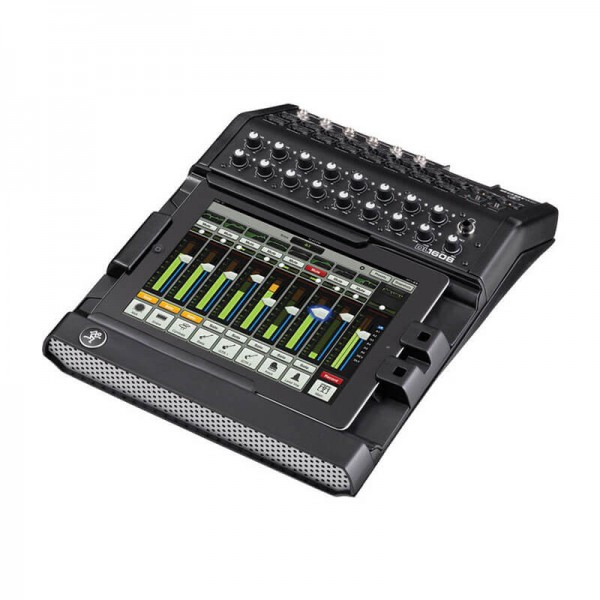

Mackie DL1608 iPad Controlled Digital Mixer

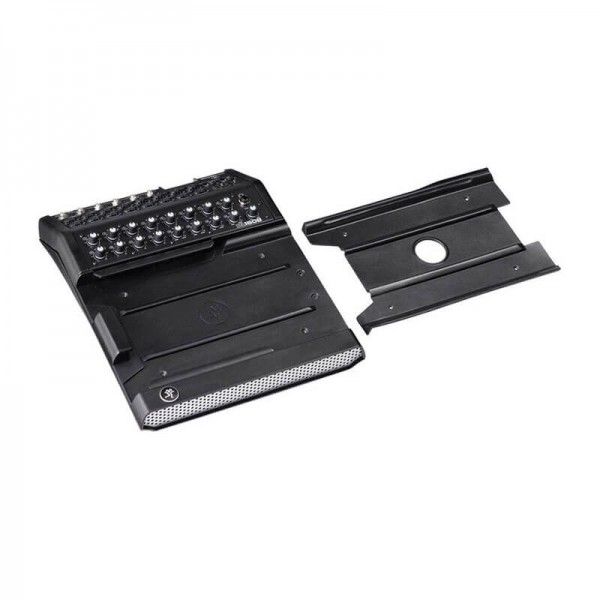

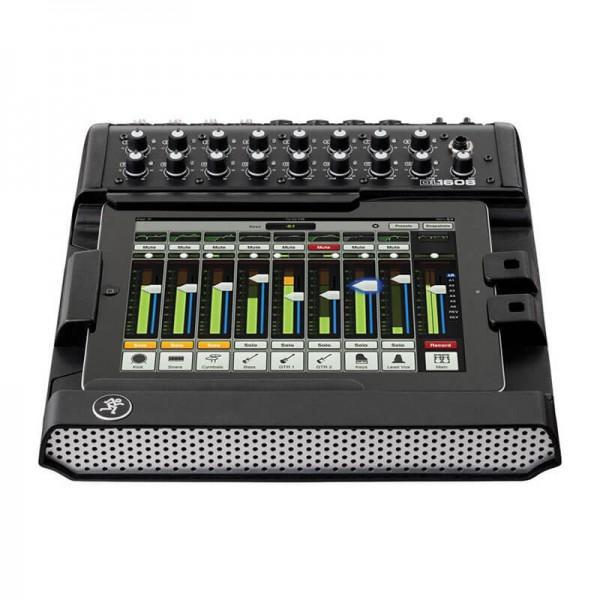

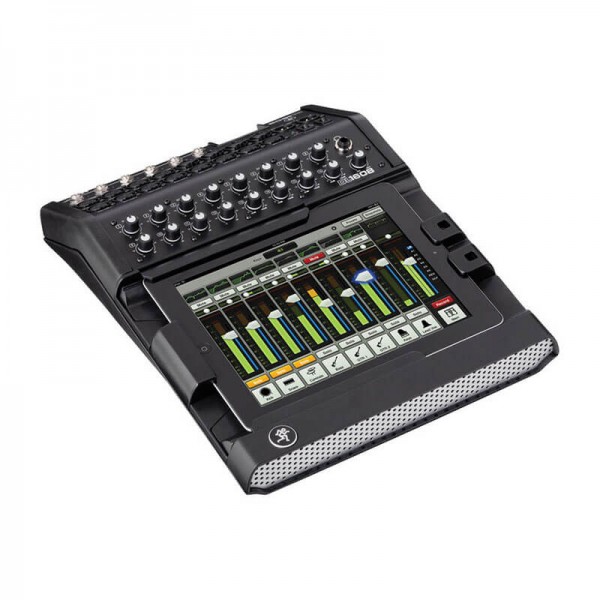

The Mackie DL1608 16-Channel Digital Live Sound Mixer with Lightning Connector allows the entire process of live-sound mixing to be controlled by an iPad with Lightning connector. The DL1608 features 16 Onyx microphone preamps, 24-bit A/D & D/A converters, powerful internal DSP processing and an iPad docking faceplate. Integrate your Apple iPad and complete the setup for a live sound mixing experience that takes advantage of the iPad's touch screen capabilities.
-
For iPad with Lightning Port
-

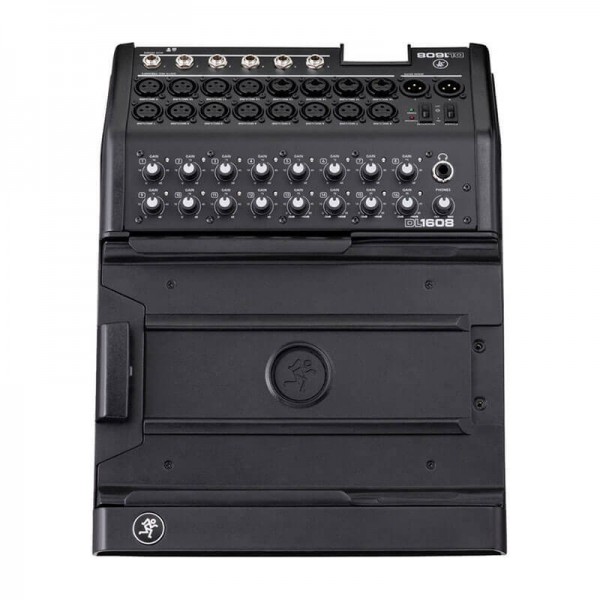

Integrated iPad Dock on Faceplate
-
iPad Mixing with Master Fader App
-
16 Onyx Microphone Preamps
-
Cirrus Logic 24-Bit A/D & D/A Converters
-

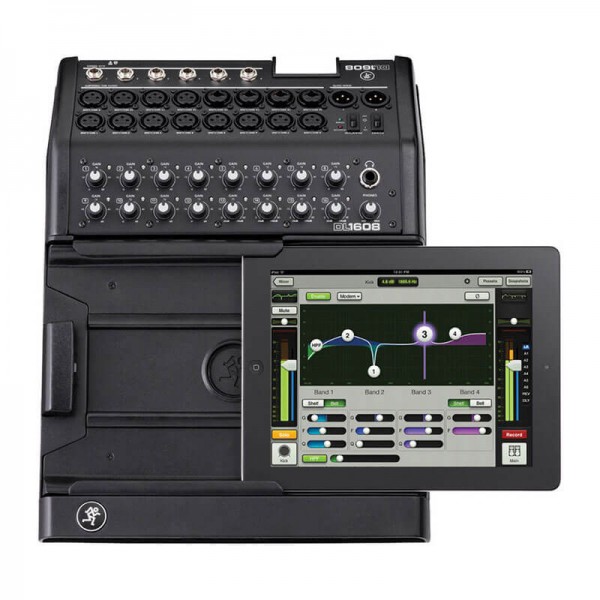

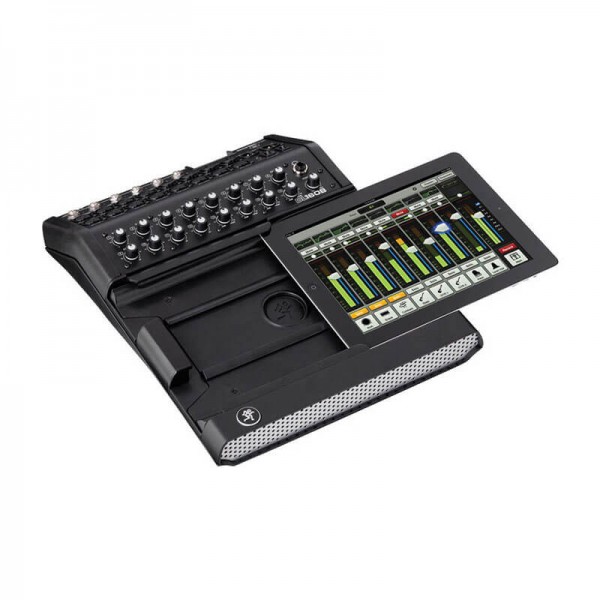

Optional Wireless iPad Operation
-
Extensive DSP Built-In
-
Snapshot Mix Total Recall
-
Support for Multiple iPads
-
Integrate & Play Music Files
|

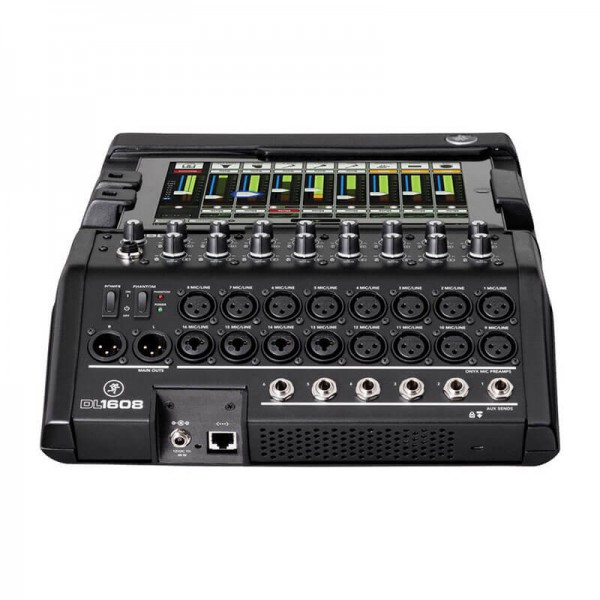

Input Connections |
12 x XLR balanced
4 x XLR & 1/4" TRS combo jack |
|
Mic Preamps |
Onyx |
|
Input Impedances |
Channels 1 - 12: 3 kΩ
Channels 13 - 16: 3 kΩ XLR, 30 kΩ 1/4" TRS |
|
Maximum Input Level |
XLR: +21 dBu
1/4" TRS: +30 dBu |
|
Gain |
XLR: 0 to 60 dB
1/4" TRS: -20 to 40 dB |
|
Phantom Power |
+48V
10 mA max per mic, with up to 8 mics
5 mA max per mic, with up to 16 mics |
|
Output Connections |
2 x XLR balanced (L/R) |
|
Output Impedance |
600 Ω |
|
Maximum Output Level |
+21 dBu |
|
AUX Sends |
1/4" TRS - supports balanced/unbalanced
240 Ω balanced, 120Ω unbalanced
+21 dBu max output level |
|
Sample Rate |
48 kHz |
|
Bit Depth |
24-bit |
|
Latency |
1.5 mS |
|
Frequency Response |
20 Hz to 20 kHz, +0 /-1 dB
all inputs to all outputs |
|
THD |
< 0.005%
mic input to main output, 1 kHz @ -1 dBFS |
|
EIN |
-128 dBu @ 150Ω termination |
|
Noise |
Mic input to main output, A-weighted:
-79 dBu, with channel and main faders @ 0 dB
-90 dBu, with channel and main faders @ -∞ dB |
|
Crosstalk |
Adjacent inputs: < -120 dB @ 1 kHz
Outputs: < - 105 dB @ 1 kHz |
|
Signal-to-Noise Ratio |
92 dB
ref +4 dBu, one channel and main fader @ 0 dB, A-weighted |
|
Dynamic Range |
109 dB
one channel and main fader @ 0 dB, A-weighted |
|
CMRR |
> 70 dB @ 1 kHz (60 dB gain) |
|
Connector |
100 MB Ethernet |
|
Control |
Complete |
|
Simultaneously Connected Remote Stations |
Up to 10 iPads |
|
iPad System Requirements |
Version Requirement: iOS 5.1 or higher [Master Fader], iOS 6 or higher [My Fader]
Wired iPad: iPad (4th generation), iPad mini (requires optional iPad mini tray accessory)
Wireless iPad: All iPad models Wireless iPhone / iPod touch: iPod touch (4th and 5th generation),iPhone 4, iPhone 4S, iPhone 5 |
|
External Power Supply |
Yes
100-240 VAC, 50-60 Hz, Universal
User-replaceable IEC |
|
Output Voltage |
12 VDC |
|
Current |
4A |
|
DC Plug |
5.5 mm x 2.5 mm barrel with locking ring |
|
Power Consumption |
48 W max |
|
Operating Temperature |
32 to 104° F (0 to 40° C) |
|
Dimensions (W x H x D) |
11.5 x 3.7 x 15.4" (291 x 95 x 391 mm)
9U rackmount plus space for connections |
|
Weight |
7.9 lb (3.6 kg) |
