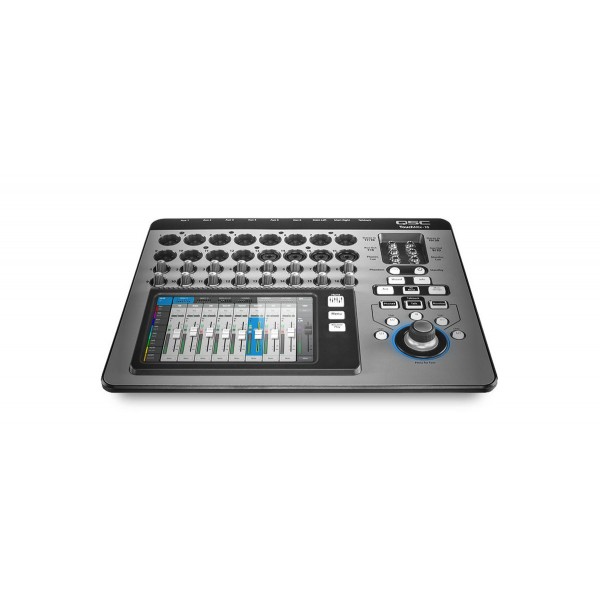

Display |
6.1” × 3.5” (156 mm × 90 mm) color TFT, touch sensing |
6.1” × 3.5” (156 mm × 90 mm) color TFT, touch sensing |
|

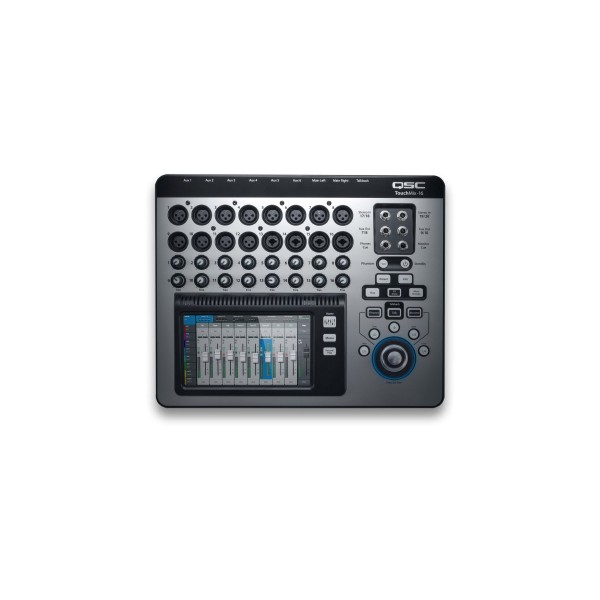

Inputs (Mic/Line) |
12 total:
Four XLR/TRS combo
Four XLR
Two stereo 1/4" TRS |
20 total:
Four XLR/TRS combo
12 XLR
Two stereo 1/4" TRS |
|
Input (Talkback) |
N/A |
One XLR |
|

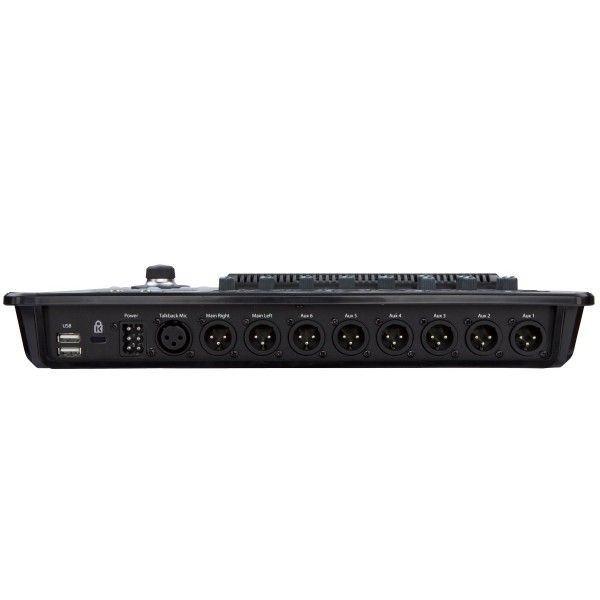

Outputs |
Two main XLR line-level
Four aux XLR line-level
One stereo TRS (line-level or in-ear monitor, 16Ω min. impedance)
One stereo cue, TRS, (line or headphone, 16Ω min. impedance) |
Two main XLR line-level
Six aux XLR line-level
Two stereo aux. TRS (line-level or in-ear monitor, 16Ω min. impedence)
One stereo monitor TRS (line-level or headphone, 16Ω min. impedance)
One stereo cue TRS, (line-level or headphone, 16Ω min. impedance) |
|
Mic & Line Input Channel Processing (both models) |
4-band parametric EQ with high/low shelving option,
variable 24 db/octave HPF & LPF, gate, compressor |
|
2-Track (USB) & FX Return Processing (both models) |
2-band shelving EQ, variable 24 dB/octave HPF, gate, compressor |
|
Output Channel Processing (both models) |
Main outputs and auxes 1–6: 1/3 octave GEQ • Limiter • 4 full-frequency notch filters • Variable 18dB/oct Low-cut and High-cut filters Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter • Additional variable 18dB/oct Low-cut and High-cut filters |
|
Recording |
14 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM |
22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM |
|
Groups (both models) |
8 DCA groups (with mutes), 8 Mute groups, auxiliaries may be used as sub groups |
|
Cue (both models) |
Selectable AFL or PFL |
|
Effects (both models) |
4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
1 pitch correct (assignable to any mono input channel) |
|
Scene and Preset Memory |
Scenes: 130 user-defined scenes, including all mixer parameters may be stored internally or on FAT32 formatted USB Channel and FX Presets: 130 user-defined channel presets and 130 FX presets may be stored internally or on FAT32 formatted USB |
|
External Control (both models) |
iOS TouchMix app for iPad, iPad mini, iPad Air. Control via Wi-Fi provides access to all mixer functions. Requires iOS 6 or higher. |
|
Wi-Fi (both models) |
USB Wi-Fi adapter included |
|
Dimensions (HWD) |
56 mm x 333 mm x 245 mm
2.2” x 13.1” x 9.6” |
58 mm x 360 mm x 291 mm
2.3” x 14.2” x 11.5” |
|
Weight |
4.3 lb (1.95 kg) |
5.9 lb (2.98 kg) |
|
Power (both models) |
100–240 VAC, 50–60 Hz |
|
Sampling Frequency (both models) |
Selectable 44.1 kHz or 48 kHz |
|
Internal Processing (both models) |
32-bit floating point |
|
Frequency Response (both models) |
20 Hz–20 kHz ±0.5 dB, any input to any output |
|
Dynamic Range (both models) |
105 dB |
|
Equivalent Input Noise (both models) |
-126 dBu |
|
Residual Output Noise (both models) |
-86 dBu |
|
Crosstalk (both models) |
-80 dB |
|
S/N Ratio (both models) |
-94 dB |
|
Maximum Input Level (both models) |
+16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs) |
|
Phantom Power (both models) |
48V, individually switchable per channel |
|
Included (both models) |
USB WiFi adapter, soft carrying case, power supply |
