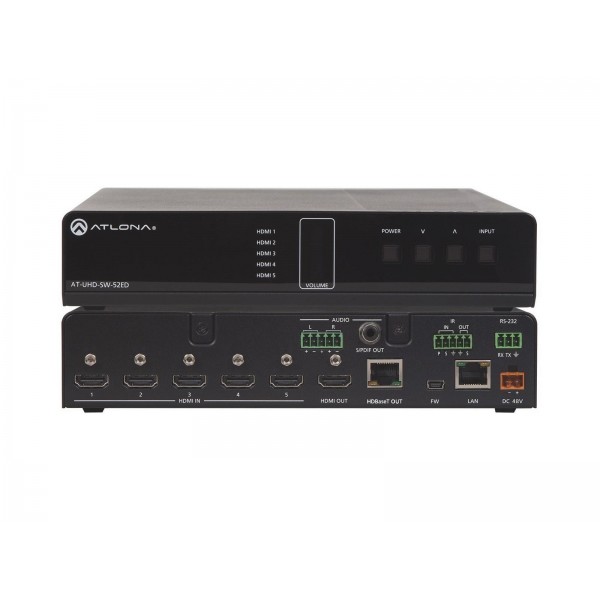

Atlona AT-UHD-SW-52ED
-
Mirrored, dual outputs on HDMI and HDBaseT
-
4K/UHD capability
-
Auto-switching
-
AV, Ethernet, power and control over HDBaseT
-
Display control
-
IR, RS-232 and Ethernet HDBaseT insertion
-
Power over Ethernet for remote-powered HDBaseT receivers
The Atlona AT-UHD-SW-52ED is a 5×1 HDMI switcher with mirrored HDMI and HDBaseT™ outputs, balanced audio outputs, auto-switching, and advanced control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, and 10.2 Gbps bandwidth. With front-panel buttons and IR control, it can be a standalone switcher. It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 328 feet (100 meters) from the switcher to PoE-powered HDBaseT receivers or HDBaseT displays. Control options include auto-switching, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Advanced features also include a web-based GUI for easy set-up and management of EDID, HDCP, and display control. The switcher offers audio de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs. The switcher is a cost-effective product for professional integration featuring a compact, 1U, half-rack width enclosure that is easily installed with the included 19” rack mount brackets. Two units can be mounted side-by-side.
Features
Mirrored, dual outputs on HDMI and HDBaseT
-
Supports dual display environments with local and extended distance 328 foot (100 meter) displays
-
Eliminates cost associated with extra extension components; simplifies installation. HDMI output can be used with additional HDBaseT transmitter
-
Compatible receiver:
AT-UHD-EX-100CE-RX (100 meter with control)
4K/UHD capability
-
Compatible with Ultra High Definition sources and displays
-
Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
Auto-switching
-
Reduces complexity or eliminates control system completely
-
Simplifies user operation
AV, Ethernet, power and control over HDBaseT
-
Delivers 4K/UHD video, audio, 100Base-T Ethernet, power and control through a single cable
-
Eliminates multiple cable runs between source, control system router and display
Display control
-
Powers-up display when a source is connected or activated; Powers-down display when a source is disconnected or deactivated; Allows switcher’s front panel volume controls to adjust display’s audio levels
-
Reduces control systems costs by automating display control
IR, RS-232 and Ethernet HDBaseT insertion
-
Adds internally-generated or externally-generated display control signals to the HDBaseT transmission
-
Simplifies display control from third-party control systems
