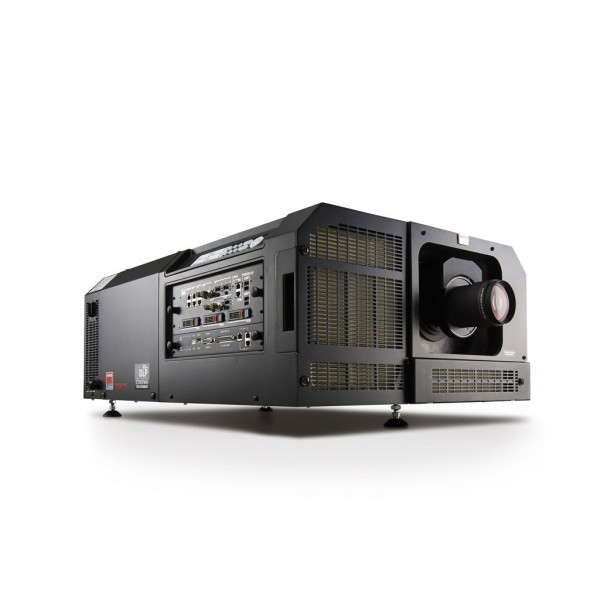

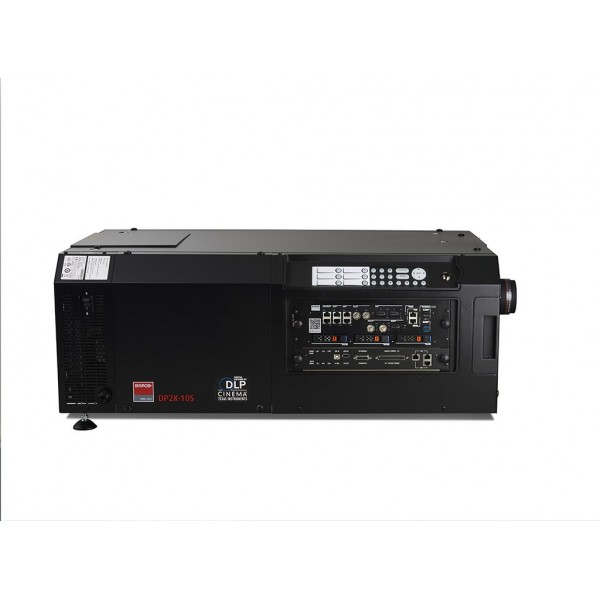

BARCO DP2K-8S 6000 Ansilumen 4K UHD Sinema Projeksiyon, 2048X1080, 1850:1 Xenon Lamba
Specifications
|
| Digital MicroMirror Device™ |
3 x 0.69” DC2K dark metal devices |
| Native resolution |
2,048 x 1,080 pixels |
| Housing |
Hermetically sealed DMDs and optical assembly |
| Lamp |
1.6kW, short-arc Xenon |
| Light output |
6,000 lumens (1.6kW lamp) |
| Screen size |
Up to 8m/26 ft wide (screen gain 1.0 @ 14ftl) |
| Contrast ratio |
1,850:1 |
| Prime lenses |
Fully motorized
1.2 – 1.7
1.34 – 1.9
1.5 – 2.15
1.7 – 2.55
2.0 – 3.9 |
| Control I/O |
3x Ethernet (RJ 45)
8x GPIO (DB 25)
3D interface
USB RS-232 interface (DB9) |
| Integrated Cinema Media Processor |
JPEG2000 2K & 4K DCI play-out
High Frame Rates 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625Mbps
Dual-channel color-correction
MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
H.264**
2x DisplayPort 1.1a
2x 3G-SDI inputs*
1x multimedia HDMI 1.4a input 2D and PCM audio (BluRay 3D / 4K in testing)*
16x AES/EBU audio channels (2x RJ45)
8x GPI, 8x GPO (4x RJ45)
2x ETH for content connectivity & ingest
2x front-accessible USB 3.0 for fast ingest
2x front-accessible USB 2.0
* in testing
** software roadmap
|
| Integrated storage |
1.9TB effective storage (RAID-5)
3x 1TB Hot-swappable 2.5″ hard-drives |
| Barco Web Commander |
Projector Dashboard
Projector Control Board
Show Player/Editor/Scheduler
Automation, 3D, Ingest
Dynamic DCP playlists & intermission
TMS integration
Smart Projector Status
Via HTML5 web-browsers including iOS & Android tablets
Dual projector passive 3D
Auro 11.1 decoding |
| Barco Communicator |
Projector installation & configuration
Projector update & maintenance |
| Power requirements |
220 V |
| Projector dimensions (HxWxD) |
325 x 625 x 910 mm
12.8 x 24.6 x 35.8 inch |
| Projector weight |
Recessed handles for easy carrying
56.5 kg / 125 lbs for carrying (lamp-house removed)
(66.5 kg / 147 lbs total weight) |
| Ambient temperature |
35°C / 95°F Max. |
| Options |
Barco CineMate App (iOS & Android) – free
ACS-2048
3D add-ons
Touch screen monitor, inc. Barco Commander & Communicator
Pedestal
CineCare Web
Auro 11.1 license**
Dual-projector license |
|
