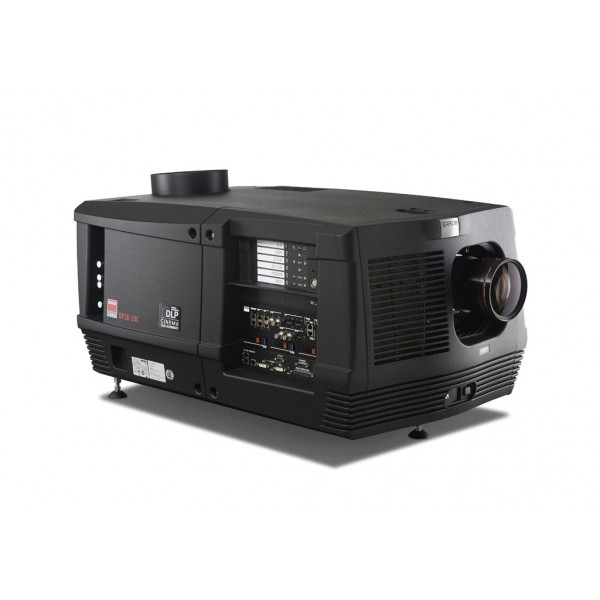

BARCO DP2K-15C Sinema Makinesi, 14500 Lümen, Motorlu Zoom Lens ve Xenon lamba dahil
| Digital MicroMirror Device™ |
3 x 0.98” DC2K dark metal devices |
| Native resolution |
2,048 x 1,080 pixels |
| Housing |
Hermetically sealed DMDs and optical assembly |
| Lamp |
1.2kW - 3kW |
| Light output |
14,500 lumens |
| Screen size |
Up to 15m / 49ft wide (screen gain 1.4 @ 14 ftl) |
| Contrast ratio |
2,000:1 |
| Prime lenses |
1.2 - 1.8
1.4 - 2.05
1.6 - 2.5
1.95 - 3.2
2.4 - 3.9 |
| Control I/O |
3x Ethernet
8x GPIO (DB 25)
3D interface
USB RS-232 interface (DB9) |
| Integrated Cinema Media Processor |
DCI 4K 2D up to 60fps*
DCI 4K 3D (24 or 30 fps per eye)*
DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625Mbps
Dual-channel color-correction
MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
2x HDMI2.0a (up to 4K 2D 60fps)
2x 3G-SDI inputs
1x HDMI 1.4a (up to 4K 2D 24fps, support for BluRay 3D)
16x AES/EBU audio channels (2x RJ45)
8x GPI, 8x GPO (4x RJ45)
2x Gbe for content connectivity & ingest
2x front-accessible USB 3.0 for fast ingest
2x front-accessible USB 2.0
Video watermarking: Civolution NexGuard
Audio watermarking: Civolution
Closed captioning devices: Support for SMPTE 430-10
* 4K 24fps is standard. For 4K 60 fps / 4K 3D on ICMP upgrade modules a license is required. Newly-built 4K Barco Alchemy projectors have the license standard included. |
| Integrated storage |
1.9TB effective storage (RAID-5) / 3x 1TB Hot-swappable 2.5" hard-drives
3.9TB effective storage (RAID-5) / 3x 2TB Hot-swappable 2.5" hard-drives |
| Barco Web Commander |
Projector Dashboard
Projector Control Board
Show Player/Editor/Scheduler
Automation, 3D, Ingest
Dynamic DCP playlists & intermission
TMS integration
Smart Projector Status
Via HTML5 web-browsers including iOS & Android tablets
Dual projector 3D: passive and active
Auro 11.1 decoding |
| Barco Communicator |
Projector installation & configuration
Projector update & maintenance |
| Projector diagnostics |
via Integrated Media Server
via Communicator control software
via SNMP agent |
| Power requirements |
220V |
| Dimensions |
558(H) x 694(W) x 1034(D) mm
22.0(H) x 27.3(W) x 40.7(D) inch
NB.: min. 5 cm of air inlet spacing required at the bottom of projector |
| Weight |
102kg (225lbs) |
| Ambient temperature |
35°C / 95°F Max. |
| Options |
Barco CineMate App (iOS & Android) - free
3D add-ons
Touch screen monitor, inc. Barco Commander & Communicator
Pedestal
CineCare Web
Auro 11.1 license
Barco Escape license
Dual-projector license |
