Suitable for speech and music reproduction
-
Simple power setting
-
2 m fixed connection cable
-
Splash-waterproof

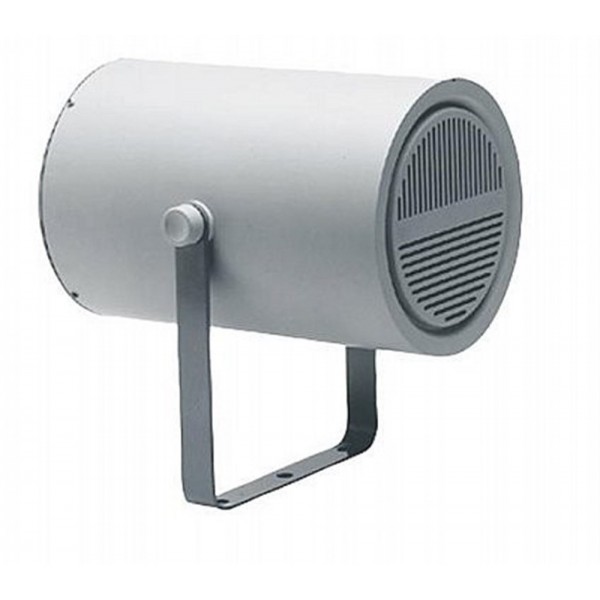

The LBC 3094/15 is a sound projector for speech and music reproduction in indoor or outdoor applications such as shopping centers, factory grounds and sports fields.
-
Electrical*
-
Maximum power 15 W
-
Rated power 10 / 5 / 2.5 W
-
Sound pressure level at 10 W / 1 W (1 kHz, 1 m) 102 dB / 92 dB (SPL)
-
Effective frequency range (-10 dB) 140 Hz to13 kHz
-
Opening angle at 1 kHz / 4 kHz (-6 dB) 160° / 70°
-
Rated voltage 100 V
-
Rated impedance 1000 ohm
-
Connection 2 m 4-wire cable
-
Mechanical
-
Dimensions (D x L) 175 x 268 mm (6.9 x 10.5 in)
-
Weight 2.5 kg (7.3 lb)
-
Color Off white (RAL 9001)
-
Environmental
-
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
-
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
-
Relative humidity <95%
