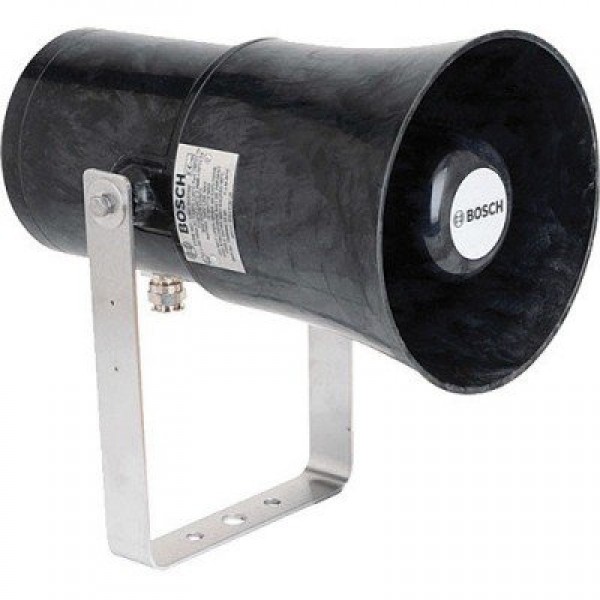

The Bosch LBC 3438/00 Horn Loudspeaker has a powerful 37.5 W speaker designed and approved for use near explosive gas-air mixtures, including hydrogen.
Functions
The flame paths, flare and body of both loudspeakers are constructed from a UV stable glass reinforced polyester (GRP). This strong, fire and corrosion resistant material offers greater reliability and reduced maintenance costs. GRP is also chemical resistant and thermally stable, making it ideal for even the harshest environments. The horns are weather proof, and incorporate stainless steel mounting brackets and captive cover screws, and a stainless steel sinter, to increase their resistance to corrosion. They are supplied with an EExdIIC gland as standard
Reduced maintenance costs
Corrosion and chemical resistance
Certifications and Approvals
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration
ATEX approved
BASEEFA-certified
CENELEC-approved
Water & dust protected to class IP 66 and IP 67
Power Maximum: 37.5 W
Rated: 25 / 12.5 / 6 / 4 / 2 / 1 W
SPL 114 / 100 dB
Frequency 420 Hz to 3.5 kHz
Angle of Coverage 160/60°
Voltage 100 V
Impedance 400 ohm
Connector Screw terminal
Region Certification Europe: CE Declaration of Conformity, Supplementary Examination Certificate
Color Natural black
Temperature / Humidity Operating Temperature: -13 to 131 ºF (-20 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Humidity: <95%
Cable Diameter 0.3 to 0.5" (7.5 to 11.9 mm)
Dimensions (L x Diam) 10.7 x 6.7" (27.1 x 17.0 cm)
Weight 11.0 lb (5.0 kg)
