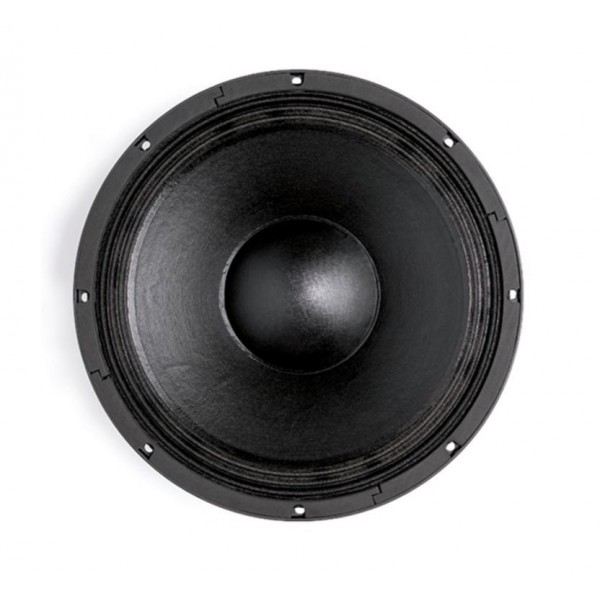

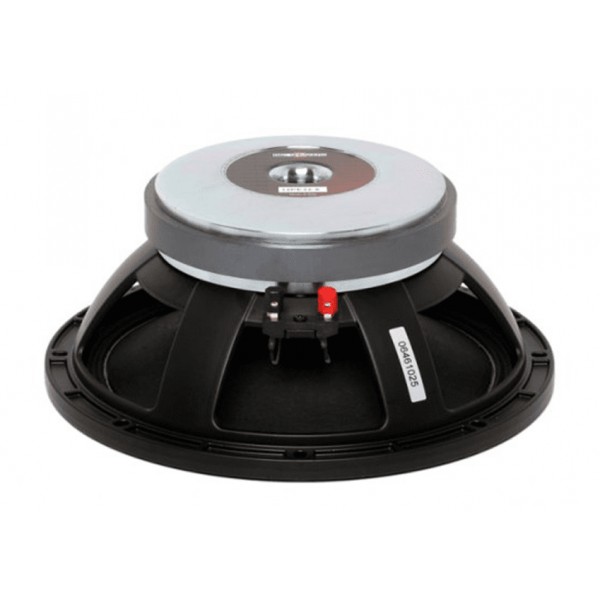

B&C 12PE32 12 İnc Çıplak Hoparlör 500 Watt

• 500 W continuous program power capacity
• 64 mm (2.5 in) aluminium voice coil
• 50 - 4000 Hz response
• 101 dB sensitivity

Nominal diameter

320 mm (12.0 in)

Nominal impedance

8 Ω

Minimum impedance

6.7 Ω

Nominal power handling *

250 W

Continuous power handling *

500 W

Sensitivity (1W/1m) *

101.0 dB

Frequency range

50 - 4000 Hz

Voice coil diameter

65 mm (2.5 in)

Winding material

Aluminium

Former material

Glass Fibre

Winding depth

12 mm (0.5 in)

Magnetic gap depth

7 mm (0.28 in)

Flux density

1.4 T
