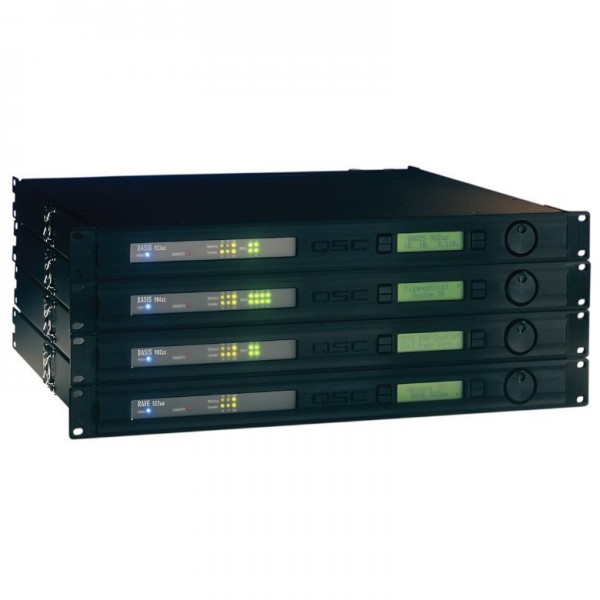

Name: Qsc Rave 522 Ua Cobranet i/O 8X8 İşlemci - mars002667
Availability: InStock

FEATURES

Universal inputs – mic/line with pre-amps and phantom power
Configurable DSP functions and signal paths
Fixed latency DSP engine
Ethernet controllable
CobraNet audio transport with new intuitive GUI
Two Ethernet ports – CobraNet and control can be run over a single cable
or be divided between the two ports. The CobraNet port is 100Base-T.
The control port is 10Base-T.
Each unit can store eight design configurations that can be changed on the fly
Snapshots can recall config or block and/or parameter settings
THX Approved
DSP functions include, but are not limited to:
Matrix mixer – any size, up to 24 x 24
Automixers – gain sharing
Routers – any size, up to 24 x 24
Gain controls – any channel count, up to 24
Graphic equalizers
Filters – high-pass, low-pass, all-pass, shelf, parametric, parametric shelf, Butterworth high and low-pass, Linkwitz-Riley high and low-pass, Bessel-Thomson high and low-pass
Crossovers – Linkwitz-Riley, Butterworth, Bessel-Thomson in-phase, Bessel-Thomson symmetrical, 2-way, 3-way, and 4-way general purpose adjustable
Compressors, peak limiters, AGC's, gates, dynamics processor
Duckers – up to 8 channels, up to 60 seconds fade in and fade out times, priority mix
Pink noise, white noise, sine generator
Delays
Macros – user-definable custom blocks with password protection

Preliminary Specifications - RAVE 522ua

SPECIFICATIONS	RAVE 522ua
PERFORMANCE
Dynamic range (AES-17, -60 dB method, all sensitivities)	IN	OUT	THRU
Unweighted	> 110 dB	> 112 dB	108 dB
A weighted	> 113 dB	> 115 dB	111 dB
Distortion (20 Hz - 20 kHz, all sensitivities)
+4 dBu (max)	< 0.008% THD+N	< 0.009% THD+N	< 0.009% THD+N
2 dB below clip (max)	< 0.05% THD+N	< 0.009% THD+N	< 0.05% THD+N
Crosstalk (20 Hz - 20 kHz)
Inter-channel (max)	> 75 dB
Inter-channel (typ)	> 90 dB
Intra-channel (max)	> 85 dB
Intra-channel (typ)	> 100 dB
Frequency response
20 Hz - 20 kHz (max)	+/- 0.5 dB
20 Hz - 20 kHz (typ)	+/- 0.2 dB
Audio converters	24 bit, 48 kHz, in and out
Mute	Infinite attenuation
Delay	Standard CobraNet™ latency		Low Latency
RAVE to Network Analog input through full DSP chain to CobraNet output	7.104 milliseconds		4.438 milliseconds
Network to RAVE CobraNet input through full DSP chain to analog output	6.313 milliseconds		3.646 milliseconds
RAVE to RAVE Analog input through full DSP chain, over CobraNet network, through full DSP chain, to analog outputs	8.083 milliseconds		5.417 milliseconds
RAVE in stand-alone mode Analog input through full DSP chain to analog outputs	2.354 milliseconds (deafult group delay)
INPUTS/OUTPUTS
Program inputs	8 inputs
Connector type	3-pin "phoenix style" (a.k.a. "euro style") detachable terminal blocks
Type	Electrically balanced
Grounding	All shield terminals connected to chassis
Pinout	1:+ 2:- 3:CHASSIS GND
Input impedance (nom.)	Balanced: 6.81k ohms Unbalanced: 13.6k ohms
Common-mode rejection	20 Hz - 20 kHz (min.): > 54 dB, 20 Hz - 20 kHz (typ.): > 60 dB
E.I.N. (max.)	150 ohm, 30 dB: -124.5 dBu 150 ohm, 60 dB: -125.0 dBu
Input sensitivities (variable)	Vrms: 0.9 mV to 15.46 V dBu: -62.2 to +26 dBu dBV: -64.4 to +23.7 dBV
Phantom power (per IEC 1938 [1996])	+48 V (software selectable)
Program outputs	8 inputs
Connector type	3-pin "phoenix style" (a.k.a. "euro style") detachable terminal blocks
Grounding	All shield terminals connected to chassis
Pinout	1:+ 2:- 3:CHASSIS GND
Maximum output level	9 V (rms), +21.2 dBu, +19 dBv
CONTROL INPUTS/OUTPUTS
Relay outputs	2 discrete floating relay switch outputs
Connector type	3-pin "phoenix style" (a.k.a. "euro style") detachable terminal blocks
Configuration	Electromechanical relay
Pinout	1:NC 2:NO 3:COM
Switching capacity (nom)	1A 30 VDC
Logic outputs	4 discrete outputs
Connector type	2-pin "phoenix style" (a.k.a. "euro style") detachable terminal blocks
Configuration	Single-ended, TTL compatible
Pinout	1:+(Signal) 2:-(CHASSIS GND)
Omni inputs	6 discrete inputs for TTL logic, voltage control or passive resistance
Connector type	2-pin "phoenix style" (a.k.a. "euro style") detachable terminal blocks
Configuration	Single-ended, ground referenced
Pinout	1:+(Signal) 2:-(CHASSIS GND)
Normal operating range	Reads signals between 0-5 V nominally
Potentiometer operation	Use 10k ohms for full range
Voltage tolerance	+/- 48 V
Current output	0.5 mA with 10k pot (for passive resistive controls)
RS-232 port	Female DB9 connector (setup and diagnostics purposes only)
QSControl port	Neutrik Ethercon RJ45 ruggedized data connector
CobraNet port	Neutrik Ethercon RJ45 ruggedized data connector
Indicators
QSControl status	Yellow Link, Tx, Rx, front panel Green Link, Tx, Rx, rear panel
CobraNet status	Yellow Link, Tx, Rx, front and rear panel
Power	Blue, front panel
Diagnostic	Red, front panel
LCD data display	2 line x 16 character, backlit, front panel
Signal presence	Tri-state (red, greeen, yellow), front panel
CHASSIS DIMENSIONS & WEIGHT
Dimensions (HxWxD)	1.72" (1RU) x 17.13" x 14.84" (43.6 mm x 435.6 mm x 376.9 mm)
Weight	10.6 lbs / 4.8 kg
