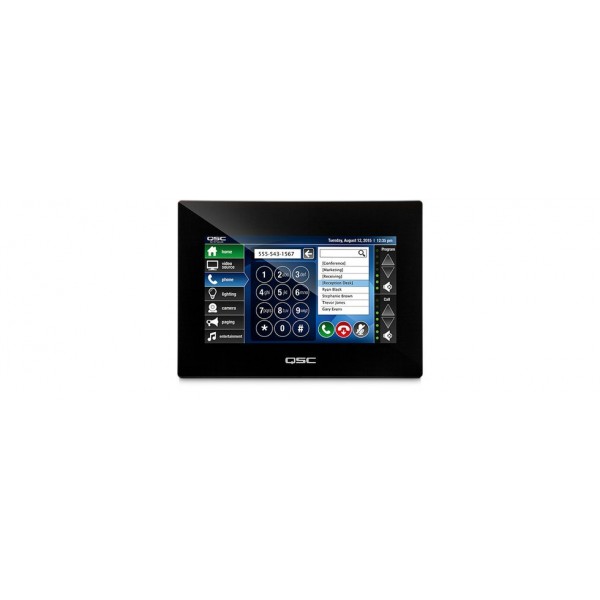

QSC Q-SYS TSC7-PS Dokunmatik Kontrol Paneli
PROJE ÜRÜNÜDÜR
ÖZEL FİYATLAR İÇİN İLETİŞİME GEÇİNİZ
ÖZEL FİYATLAR İÇİN İLETİŞİME GEÇİNİZ
QSC Q-SYS TSC7-PS Dokunmatik Kontrol Paneli
- Marka: QSC
- Ürün Kodu:: mars002000
0,00TL
Vergiler Hariç: 0,00TL
Havale ile 0,00 ₺
QSC Q-SYS TSC7-PS Power Supply for Touch Screen Controller
Features
- Consolidate Dialing and Control: In addition to the dialing functionality for your conferences, this 7 inch screen (800px x 480px) can be used to control a myriad of third-party devices prevalent in boardrooms and meeting rooms via the Core (no additional control processor box required).
- Capacitive Touch Technology: Eliminates physical knobs and buttons increasing product reliability.
- Single drop PoE cabling: Ethernet connection haves for simplified wire terminations without the need for additional power wiring.
- Redundancy Options: TSC-7w provides two network ports for connection back to the Q-SYS™ Core.
| Model TSC-7w | |
| Preliminary Specifications | |
| Front Panel Controls | 7”, capacitive touch surface |
| Display | |
| LCD | Innolux LCD |
| Luminance | 400 nits (400 lumen/candela per square meter) |
| Resolution | 800 x 480 |
| Power Requirements | +12V DC |
| Power Source | |
| PoE (Power over Ethernet) | IEEE 802.3af class 3 device via LAN A |
| Optional External Source (not included) | 12VDC @ 1A (12W) Barrel connector: Negative contact – 5mm OD Positive contact – 2.5mm ID |
| Rear Panel Connectors | |
| RJ45 (x2) | LAN A (PoE) and LAN B ports (10/100/1000 Mbps) |
| USB Micro AB Type | USB OTG 2.0 (for future use) |
| Barrel connector: Power inlet | Accommodates +12 VDC power supply |
| Reset button | Recessed button - Use a paper clip or similar tool to reset the unit. |
| Included Accessories | Mounting Post for permanent through-table mounting and cable management |
| Dimensions (HWD) inches | 5.6 x 7.8 x 1.5 |
| Dimensions (HWD) mm | 143 x 198 x 38 |
| Weight (Net) | TBD |
