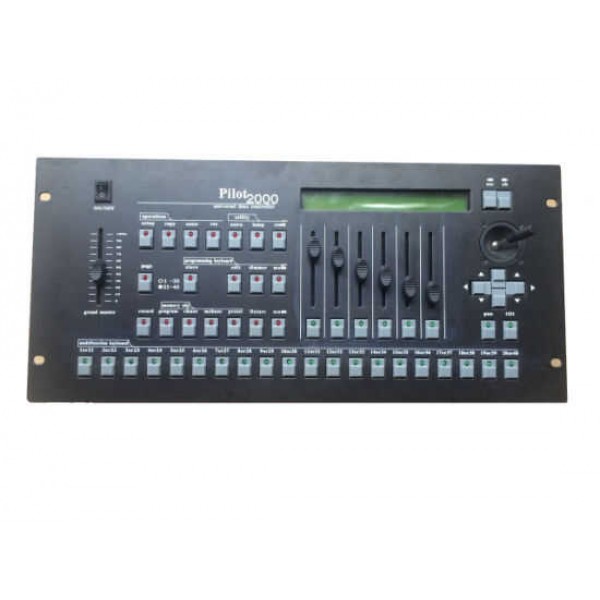

DSN PILOT2000 Profesyonel Işık Masası
512 CH. DMX MOVING HEAD CONTROL DESK 40
FIXTURE. 40 BANKS 40 CHASES WORKING MODE
SOUND/MIDI/AUTO/MANUAL
- Voltage: AC 110V/120V 60HZ 220V/230V/240V 50Hz
- Universal DMX controller for 40 units with a maximum of 36 channels each.
- Constant monitoring of output parameters thanks to a large rear-lit display.
- Using the scroll function, operators can control blocks of 6 channels at a time.
- Thanks to the (editable) on-board libraries, it is possible to assign functions
- to the faders at will: physical and logic channels are independent.
- The section dedicated to automatic fixtures (scanners and moving head
- units) has a dual coordinates system.: absolute and relative. This ensures
- perfect fixture positioning.
- 109 is a standard 19 rack-mounting unit (5 units), but can also be used
- as a table-top console, thanks to the shape of its chassis.
- Save of storing data and memories on PC is available.
- Unit Size: 75 x 482 x222mm
- Unit Weight: 3.8kg
