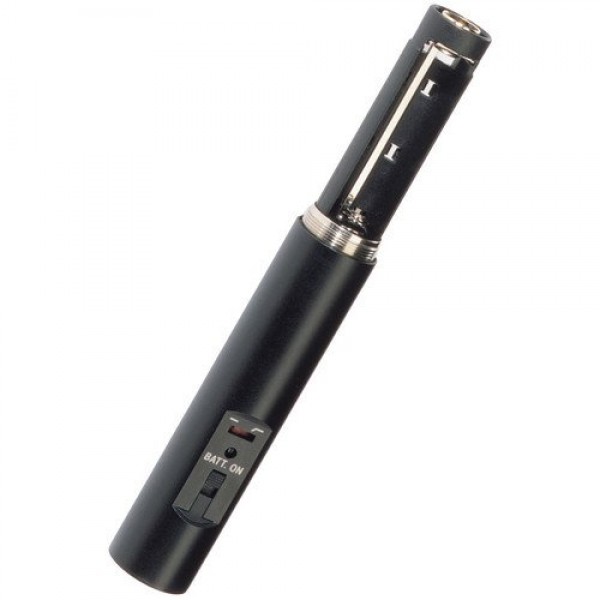

The K6 powering module is the heart of this Sennheiser professional modular microphone system and can be powered either by its internal 'AA' size 1.5 V battery or by 12 - 48 V phantom power. The K6 can be combined with different condenser microphone heads to provide a wide variety of polar patterns. Matt black, anodised scratch-resistant finish.
Features
-
Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
-
On/off switch with battery test
-
High output, low noise
-
Transformerless balanced output on 3-pin XLR connector
| Dimensions |
d 22 x 94 mm (netto) |
| Frequency response (microphone) |
30.....20000 Hz +- 1 dB |
| Transducer principle (Microphone) |
Pre-polarised condenser microphone |
| Weight |
ca. 45 g |
| Nominal impedance |
200 Ohm |
| Min. terminating impedance |
1000 Ohm Phantom |
| Operating time |
max. 150 h (netto) |
| Gain |
0 dB |
| Current consumption |
2,2 mA (netto) |
| Output voltage |
2 V Phantom |
| Battery Specification |
12 - 48 V 1x Typ IEC LR 06 Phantom |
What's in the box?
- 1 K6 powering module
- 1 MZQ 200 microphone clamp
- 1 AA battery
- 1 protective carrying case
