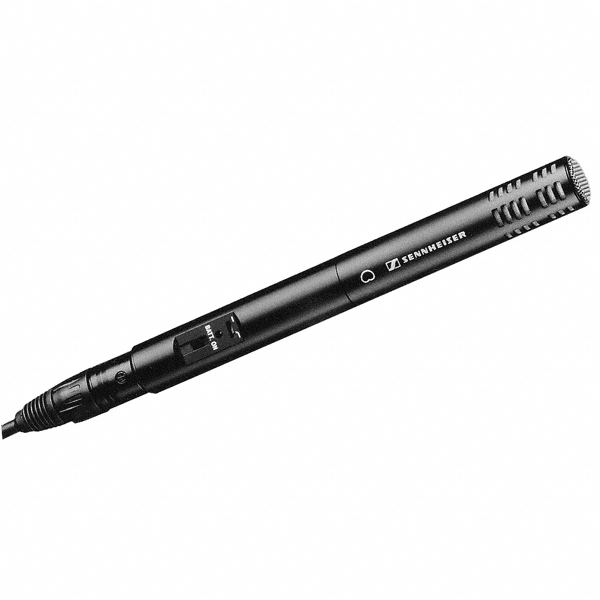

Back-electret microphone Capsule suitable for K6 and K6P powering modules. The ME 64 is a cardioid microphone capsule designed for use with the K6 and K6P powering modules. It has a very wide range of applications including reporting, interviews, dubbing, live sound reinforcement and recording applications. Matte black, anodized, scratch-resistant finish.
Features
-
Excellent directivity across whole frequency range
-
Very good feedback rejection
-
Effective rejection of incidental rear noise
-
High speech clarity
-
High maximum sound pressure level
-
Wide frequency range
-
Integrated pop filter
| Dimensions |
Ø 22,5 x 106 mm |
| Frequency response (microphone) |
40.....20000 Hz +- 2,5 dB |
| Sensitivity in free field, no load (1kHz) |
31 mV/Pa +- 2,5 dB |
| Nominal impedance |
200 Ohm ( K6) |
| Min. terminating impedance |
1000 Ohm (K6) |
| Equivalent noise level |
16 dB |
| Equivalent noise level weighted as per CCIR 468-3 |
25 dB |
| Maximum sound pressure level (passiv) |
130 dB /1 kHz (K = 1%) |
