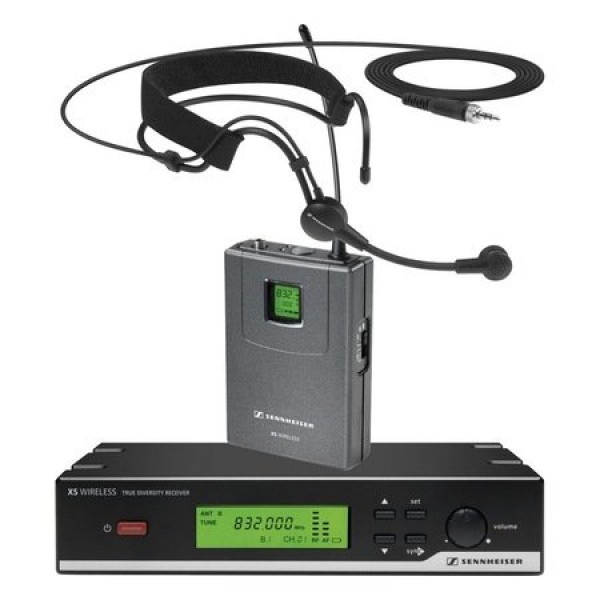

Lightweight and comfortable. The XS WIRELESS Headmic Set gives you absolute freedom of movement for a vivid and impressive performance. The professional ME 3 headworn microphone provides crystal-clear sound even in noisy surroundings.
Features
-
Easy-to-use, all-in-one package for singers, speakers and presenters
-
Hands-free operation
-
Outstanding sound quality
-
Mute button for full speech control
-
Synchronization via RF remote channel
-
Frequencies tunable in steps of 25 kHz
-
24 MHz bandwidth (13 MHz for the E band)
-
8 frequency banks with each max 12 presets
| RF frequency range |
821...832 MHz / 863...865 MHz |
504927 |
| 766...790 MHz |
504926 |
| 614...638 MHz |
504924 |
| 606...630 MHz |
504923 |
| 548...572 MHz |
504925 |
| 548..... 865 MHz |
|
| Presets |
12 |
|
| Frequency response |
mic.:100...16000 Hz |
|
| line:50...16000 Hz |
|
| THD, total harmonic distortion |
< 1 % |
|
| Signal-to-noise ratio |
> 103 dB(A) |
|
| Transmission/receiving frequencies |
960 (520 in range E) |
|
| Switching bandwidth |
24 MHz (13 MHz in range E) |
|
Receivers
Article No. 504927, 504926, 504924, 504923, and 504925
Technical Data and Specification of XSW 52
| |
| Dimensions |
200 x 127 x 42 mm |
|
| Weight |
730 g |
|
| Antenna connector |
2 BNC, 50 Ohm |
|
| Audio output level (balanced) |
XLR: +14 dBu max |
|
| Audio output level (unbalanced) |
Jack: +8 dBu max |
|
| Diversity reception |
True Diversity |
|
Transmitter
Article No. 504927, 504926, 504924, 504923, and 504925
Technical Data and Specification of XSW 52
| |
| Dimensions |
96 x 66 x 24 mm |
|
| Weight |
~ 95 g |
|
| RF output power |
10 mW |
|
| In compliance with |
ETS 300422 , ETS 300445 , CE , FCC |
|
| Operating time |
typ. 10 h |
|
| Input voltage range |
0,5 Vrms line |
|
| 1.8 Vrms line |
|
Microphone
Article No. 504927, 504926, 504924, 504923, and 504925
Technical Data and Specification of XSW 52
| |
| Microphone |
permanent polarized |
|
| Sound pressure level (SPL) |
150 dB(SPL) max. |
|
| Pick-up pattern |
cardioid |
|
| AF sensitivity |
1,6 mV/Pa |
|
What's in the box?
- 1 EM 10 stationary receiver
- 1 SK 20 bodypack transmitter
- 1 ME 3 headworn microphone (cardioid pick-up pattern)
- 1 NT 2-3 power supply unit
- 2 antennas
- 2 AA batteries
- 1 pouch
- Instruction manual
