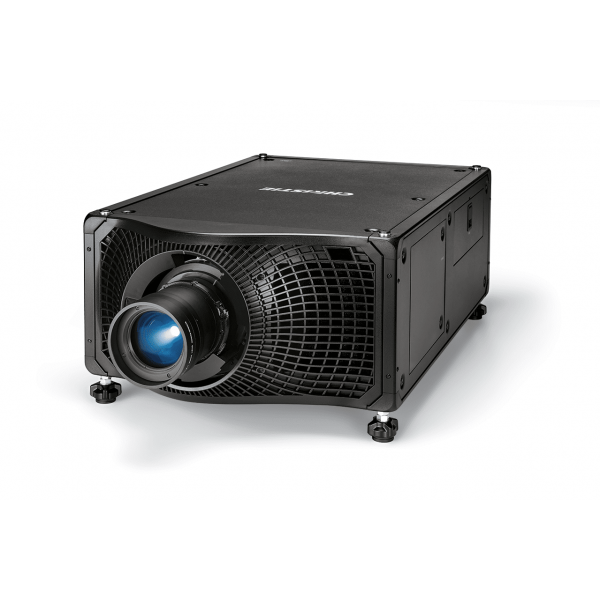

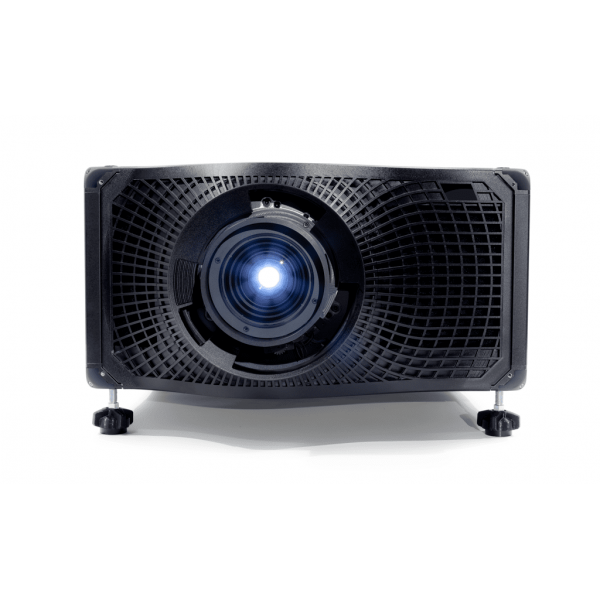

Christie Boxer 2K30 30.000 Ansilümen Dijital Sinema Makinesi 4K

• 29,000 ANSI (typical)
• 30,​​​000 centre
• 32,500 ISO

• 2000:​1

• 3DLP 1.38" DMD

• HD (1920 x 1080)
• 2K (2048 x 1080)

• 6x 450W NSH

• 1500 hours to 70% initial brightness

• 2 x High bandwidth slot (slot 0)

• 1 x HDBaseT
• 1 x High bandwidth multi-input card (HBMIC)

Installed in slot 0​

• 2 x 12G-SDI
• 1 x HDMI 2.0
• 1 x DisplayPort 1.2
• 1 x Christie Link Fiber (QSFP+)

• 300 Mpx/s - TruLife Lite Electronics

• Keypad
• RS232 in
• Ethernet (10/100) RJ45

• Dual link DVI input card
• Twin HDMI input card
• ​Dual 3G HD-SDI input card
• Twin DisplayPort input card
• Rigging and stacking frame​​
• HB Multi input card
• Quad DisplayPort input card (HB)

• Tool-free lens insertion system
• Boresight adjustable
• Motorised horizontal and vertical lens offset
• Motorised zoom and focus adjustment

Fixed

• 0.72:1 (no offset)
• 0.9:1 (Offset: V: ±45%, H:​ ±18%)

Zoom

• 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
• 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
• 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
• 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
• 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
• 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
• 5.43:1 -7.69:1 (Offset: V: ±56%, H: 19%)

• 200-240V
• 19A

• 37.75 x 23.5 x 12"
• 959 x 597 x 305mm

• 72.6kg (160lbs)

• Temperature: 5 to 40°C (41 to 104°F)
• Humidity: 10 to 80%, non-condensing

• 3-year
